RADICURE D™ Electric Screen Printing Conveyor Dryer


Documents

Product Brochure

Service & Support

Learn More
AIR HANDLING
  • Adjustable air displacement and evacuation systems
  • Enhanced airflow accelerates drying/curing
  • High-volume circulation blower reduces energy costs

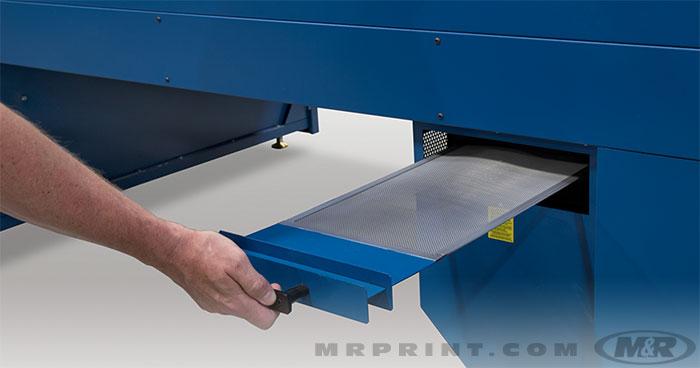

  • Stainless steel filter slides out for easy cleaning
  • Suspended insulating system (U.S. Patent No. 6,161,304. UK Patent No. GB2357827B) provides enhanced airflow and improves curing performance by leveraging infrared energy that would otherwise be lost into the dryer's insulation
  • Two separate dedicated blowers (circulation and exhaust)
CERTIFICATION
  • CE Certified: Built to specifications established by the European Committee for Standardization® (CE)
  • UL Listed: Built to specifications established by Underwriters Laboratories® (UL)

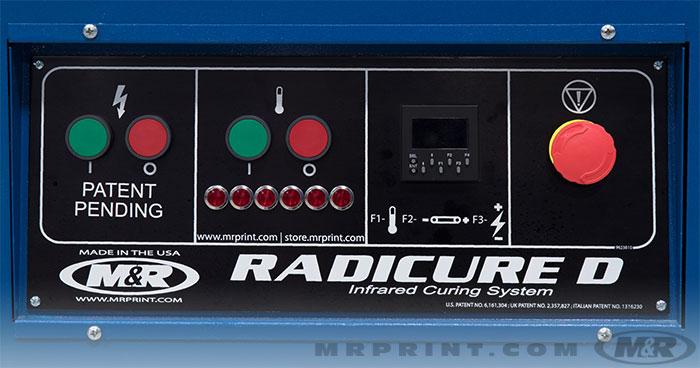

CONTROL CENTER
  • Automatic Cool-Down Mode: After the dryer has been turned off, the circulation blower and conveyor belt will continue to run until the heat chamber has cooled
  • Digital temperature readout shows set–point temperature and actual temperature in real time
  • PID control allows the conveyor dryer to power up gradually to avoid maximum amperage loads during initial warmup
  • PID control helps maintain even temperatures during screen printing production runs by phasing on and off rather than using the full-load/no-load approach
  • Tower light indicates when temperatures are within user-set tolerances
CONVEYOR SYSTEM
  • Digital belt speed readout makes it easy to duplicate conveyor dryer speed settings
  • Maintenance-free, brushless AC electric motor with variable-frequency drive provides reliable, accurate belt-speed control
  • Minimum belt speed: 91 cm (36") per minute

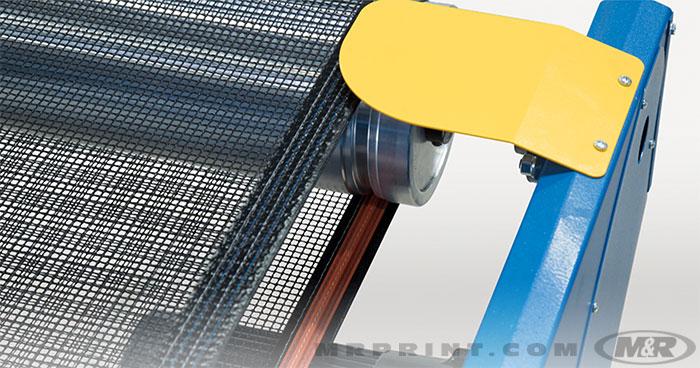

  • The Patriot Belt™ is made of heat-resistant, Teflon®-coated fiberglass
  • The red flexible bead stitched along one edge of the Patriot Belt™ rides in grooves machined into the large anodized aluminum SureTrak™ Rollers, providing the most precise belt tracking available (U.S. Patent Pending)
DESIGN & CONSTRUCTION
  • Adjustable entry/exit openings
  • Air-cooled cabinet ensures long life for electrical components
  • Circuit breakers allow easy reset
  • Low-profile design makes it easier to see over the screen printing dryer
ENERGY EFFICIENCY
  • CoolSkin™ technology leaves the conveyor dryer skin cool to the touch
  • Fast curing rates and high product throughput maximize conveyor dryer capacity and minimize per-unit cost

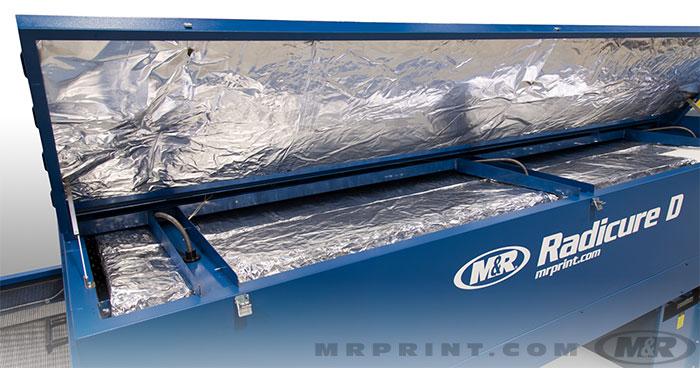

  • Heavy-duty thermal insulation prevents heat from migrating from the conveyor dryer into the workplace
  • PID control ensures consistency by keeping dryer chamber heat within 1° of target temperature at the thermocouple
  • Radicure D is the most energy-efficient dryer in its class
HEAT CHAMBER
  • Infrared radiant panel array and forced hot air
  • Single-point radiant panel height adjustment
PRODUCTIVITY
  • State-of-the-art energy-enhancing features give this dryer the highest production capacity in its class
WARRANTY, SERVICE AND SUPPORT
  • 24-hour hotline is staffed 365 days a year
  • Access to M&R’s Training Center
  • Parts & supplies are available online at store.mrprint.com
  • Two-year limited warranty
CONVEYOR SYSTEM

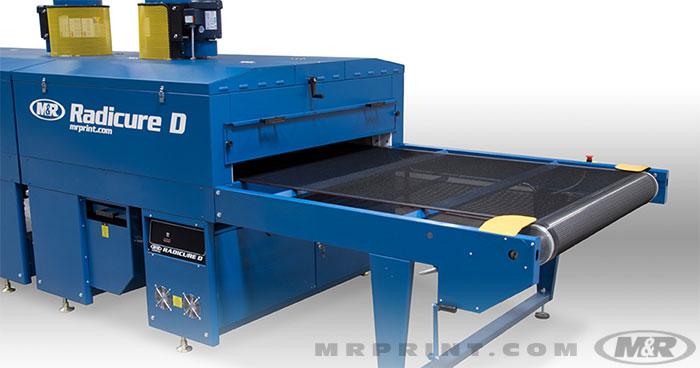

  • Conveyor extension sections are available in 30 cm (12") increments
  • High-speed conveyor system for specialized graphics and industrial applications
HEAT CHAMBER
  • Cooling fan mounted over conveyor dryer outfeed
  • Fourth radiant panel on the 36/6 model increases productivity

Model Specification

Add to Compare

Belt Width 91 cm (36”)
Electrical Requirements 208/230 V, 3 ph, 71/78 A, 50/60 Hz, 23.4 kW
380/415 V, 3 ph, 42 A, 50/60 Hz, 23.4 kW
Exhaust Blower System 30 cm (12"): 50970 l/min (1800cfm) @ 6 mm (1/4")
Heat Chamber Length 305 cm (120”)
Overall Length 610 cm (20’)
Overall Width 127 cm (50”)
Radiant Panels 6
Shipping Weight 1112 kg (2450 lb)
Standard Infeed Length 152 cm (60”)
Standard Outfeed Length 152 cm (60”)
