SPRINT® 3000 Gas Screen Printing Conveyor Dryer


Service & Support

Learn More
AIR HANDLING
  • Enhanced airflow accelerates drying/curing
  • Four separate dedicated blowers (combustion, circulation, exhaust & outfeed hood exhaust)
  • High-volume circulation blower reduces energy costs

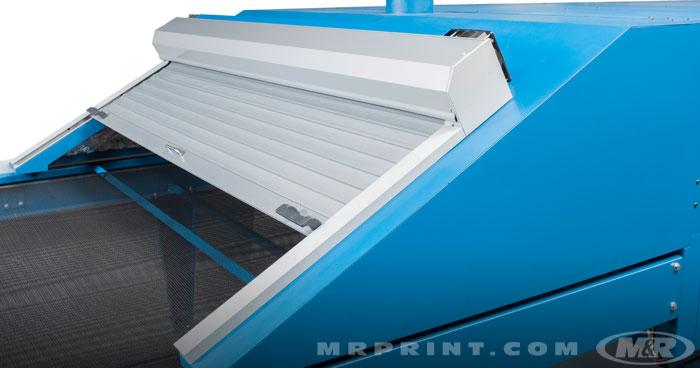

  • Integrated roll-down outfeed hood with exhaust blower
  • Stainless steel filter slides out for easy cleaning
CERTIFICATION
  • CE Certified: Built to specifications established by the European Committee for Standardization® (CE)
  • CSA Certified: Built to specifications established by the CSA Group (models sold in Australia are AGA Certified: Built to specifications established by the Australian Gas Association)
  • UL Listed: Built to specifications established by Underwriters Laboratories® (UL)

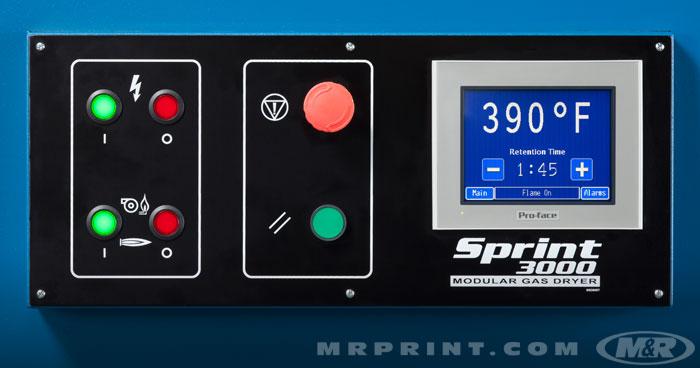

COLOR TOUCHSCREEN CONTROL CENTER
  • Automatic shutdown sequence keeps the blower and belt running until the conveyor dryer chamber has cooled
  • Displays key operational information—including heat chamber temperature and retention time—and gives operators complete control of all screen printing conveyor dryer functions
  • Graphic display tracks dryer temperature and substrate temperature in real time
  • Job Recall™ allows operators to store operational parameters under operator-chosen alphanumeric names—and recall those named settings later for similar substrate/ink combinations
  • Maintenance Minder™ system alerts operators when scheduled maintenance is due
  • Temperature monitor issues visible and audible alarms when readings fall outside user-specified parameters
  • Tower light indicates when temperatures are within user-set tolerances
CONVEYOR SYSTEM
  • AccuSet™ retention-time belt-speed controller makes it easy to duplicate settings and eliminates the need to convert feet per minute into the time substrates will spend in the heat chamber (U.S. Patent Pending: SN 13967564)
  • Driven by a reliable, heavy-duty, variable-frequency AC-drive motor
  • DynaBelt™ dynamic belt-speed controller shortens warmup and cooldown times and reduces overall energy consumption by automatically setting the conveyor belt to its minimum speed upon dryer startup and to its maximum speed upon dryer shutdown—and raising or lowering dryer temperature by more than 3° C (5° F) during operation results in DynaBelt™ changing the belt speed to maximum (when raising) or minimum (when lowering) until the desired temperature is attained (U.S. Patent Pending: SN 15251547)
  • Patriot Belt™ with the SureTrak™ roller system features a heat-resistant, Teflon®-coated fiberglass belt with a red flexible bead stitched along one edge that rides in grooves machined into the large anodized aluminum rollers, providing the most precise belt tracking available (U.S. Patents Pending: SN 15194035 & 15265538)
DESIGN & CONSTRUCTION
  • Adjustable infeed and outfeed openings
  • Air-cooled cabinet ensures long life for electrical components
  • Bearings are designed for high speeds and high temperatures
  • Circuit breakers allow easy reset

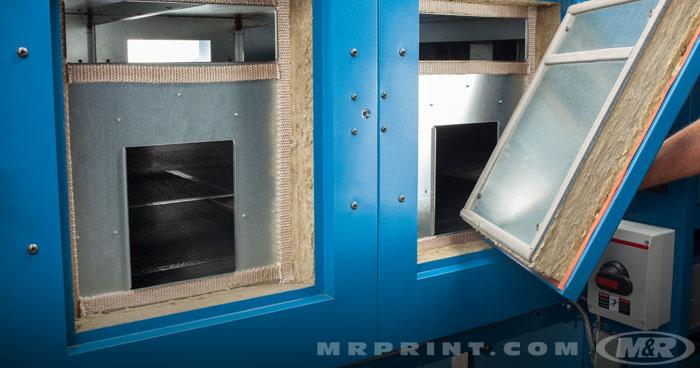

  • Cleanout access panels on the sides of the burner sections and drone modules simplify cleaning and maintenance
  • Exhaust Drawer/Creosote Catcher
  • Low-profile design makes it easier to see over the screen printing dryer
  • Modular design and specialized fasteners make it easy to attach additional 61 cm (24”) expansion modules
ENERGY EFFICIENCY
  • Burners are designed with excess capacity that far exceeds consumption rates under normal operating conditions
  • Controller ensures consistency by keeping dryer chamber heat within 1° of target temperature at the thermocouple
  • CoolSkin™ technology leaves the conveyor dryer skin cool to the touch
  • Fast curing rates and high product throughput maximize conveyor dryer capacity and minimize per-unit cost
  • Fast Warmup/Cooldown shortens warmup and cooldown times by automatically setting the conveyor belt to its minimum speed upon dryer startup and setting the conveyor belt to its maximum speed upon dryer shutdown, reducing overall energy consumption. In addition, raising or lowering dryer temperature by more than ten degrees during operation results in a proportional decrease or increase in conveyor belt speed until the desired temperature has been attained
  • Heavy-duty thermal insulation prevents heat from migrating from the conveyor dryer into the workplace
  • Pressurized vector air knives provide consistent and uniform temperatures throughout the drying chamber
  • Process temperature and set temperature are displayed and controlled digitally
  • Sprint 3000 models are the most energy-efficient gas screen printing conveyor dryers in their class
HEAT CHAMBER
  • Burners are available for liquid propane (LP) or natural gas (NG)
  • Double-wall construction
  • Galvanized steel interior
  • Modular gas train simplifies maintenance
PRODUCTIVITY
  • Sprint 3000 models have the highest production capacity of any gas screen printing conveyor dryer in their class
WARRANTY, SERVICE AND SUPPORT
  • 24-hour hotline is staffed 365 days a year
  • Parts & supplies are available online at mrprint.com/store
  • Two-year limited warranty
CONVEYOR SYSTEM
  • Infeed and outfeed conveyor extension sections are available in 122 cm (48") increments

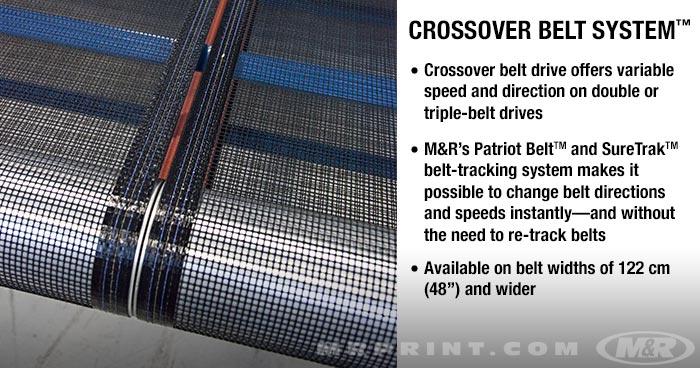

CROSSOVER™ BELT SYSTEM
  • Available on belt widths of 122 cm (48”) and wider
  • Crossover belt drive offers variable speed and direction on double or triple-belt drives
  • Crossover conveyor belts are available in a 61 cm (24”) minimum width; wider belts are available in 30 cm (12”) increments
  • Each Patriot Belt has a tracking bead matched to a corresponding SureTrak groove in the drive cylinder
  • M&R’s AccuSet retention-time belt-speed controller, coupled with M&R’s Patriot Belt/SureTrak belt-tracking system and Sprint 3000’s precise variable-frequency AC drive motors make it possible to change belt directions and speeds instantly without the need to re-track belts or recalibrate speeds
  • On Crossover Belt Systems, Job Recall allows users to create, store, and retrieve job recipes that contain heat-chamber temperature and direction and speed settings for each belt, making setup for repeat and similar drying scenarios a snap
  • Previously lost space between belts has been reduced and belts widened due to M&R’s superior belt-tracking methods
  • Standard configurations place the narrowest belt closest to the control panel side
  • Triple-belt drives are available on models with belt widths of 183 cm (72") and 213 cm (84")
  • Twin-belt drives are available on models with belt widths of 122 cm (48"), 152 cm (60"), 183 cm (72"), and 213 cm (84")
  • U.S. Patent Pending: SN 15264277
HEAT CHAMBER
  • 61 cm (24") expansion modules enable heat chamber lengths up to 610 cm (20') with a single burner section
  • 61 cm (24”) infrared pre-heat module speeds throughput

Model Specification


Belt Width 96 cm (38")
Burner Input Maximum 200 000 Btu
Burner Width 197 cm (77.5")
Electrical Requirements 208/230 V, 1 ph, 19/18 A, 50/60 Hz, 2.9 kW
208/230 V, 3 ph, 12/11 A, 50/60 Hz, 2.9 kW
380/415 V, 3 ph, 10 A, 50 Hz, 2.9 kW
Electrical requirements for 61 cm (24”) Optional Radiant Section 208/230 V, 1 ph, 19/21 A, 50/60 Hz, 3.7 kW
208/230 V, 3 ph, 11/12 A, 50/60 Hz, 3.7 kW
380/415 V, 3 ph, 8 A, 50 Hz, 3.7 kW
Exhaust Blower Size 30 cm (12")
Exhaust System Capacity @ 6 mm (1/4”) Static Pressure 50970 l/min (1800 cfm)
Expansion Heat Modules 61 cm (24")
Gas Input Size 2.54 cm (1")
Heat Chamber Length 244 - 610+ cm (8' - 20+')
Heat Chamber Width 135 cm (53")
LP/Natural Gas Input Pressure .93 mm Hg (5" w.c.)
Overall Length 610 - 1097+ cm (20' - 36+')
Shipping Weight 1496 kg (3300 lb)
Standard Infeed/Outfeed Length 122 cm (48”)/244 cm (96")

Customer Reviews


avatar

Dual belt is worth the money

Sunday, Jun 26, 2022
Justin WillmanJ.W. CONTRACT SCREENCOVINGTON, KY, USA
Highly recommend. This dryer is cool to the touch, and very efficient on gas. The dual belt option is awesome, we do plastisol and discharge and it's nice to slow one belt down for discharge and still be able to run a faster belt on the other side to keeep production moving. We bought 2 of these in 60" to replace our old Sprint 2000 and are happy with the change. We also have a Mini-Sprint 3000 38
avatar
Monday, Jan 16, 2017
Michael Dixon, Production ManagerAwesome MerchandiseLeeds, UNITED KINGDOM
The Sprint 3000 is superb and we are really, really happy with it. We've got the recipes dialed in for our inks now and it's running great. We have noticed improvements in the finish on our plastisols, too. They seem to be coming through much softer. Assuming it's because we are much more efficiently curing than with the electric curers!
