New COBRA TSE™ Automatic Screen Printing Press

Downloadable Information

Product Brochure

Service & Support

Learn More
  • Additional flash cure communication ports (6 on each machine) enhance hybrid printing capabilities
  • Ball-screw indexing system with automatic lubrication provides high speeds and consistent, quiet operation
  • Clockwise or counterclockwise rotation
  • Double-Index capability increases maximum image area
  • Flat-indexing carousel that will easily accommodate future growth in the digital arena
  • More robust indexing system with smoother, quieter operation
  • Servo drive indexer provides smooth operation and durable consistency
  • CE & UL compliant: Built to specifications established by the European Committee for Standardization® (CE) and Underwriters Laboratories® (UL)
  • Countdown program indicates when operator-set index count has been reached
  • Enhanced Maintenance Minder™ System alerts operators when scheduled maintenance is due, including photos and tutorials

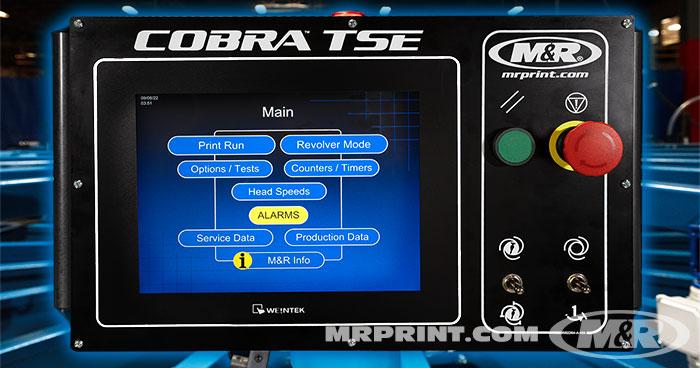

  • Icon-based, 10” high-resolution Human Machine Interface (HMI) with enhanced built-in operational tutorial screens
  • Icon-based, high-resolution Human Machine Interface (HMI) with built-in tutorial screens
  • Independent print-start/print-finish setting automatically activates and stops printheads at the beginning and end of print runs and also enables single pallet test printing
  • Multiple (1-4) print stroke capability
  • Onboard self-diagnostics
  • Selectable multi-print option
  • Swiveling control arm with multi-angle adjustable touch-screen display
  • Assists operators in the precise positioning of garments and cut pieces. See it in action!
  • Speeds pallet positioning and changeover
  • Permits fast, incremental off-contact adjustment independently on each head

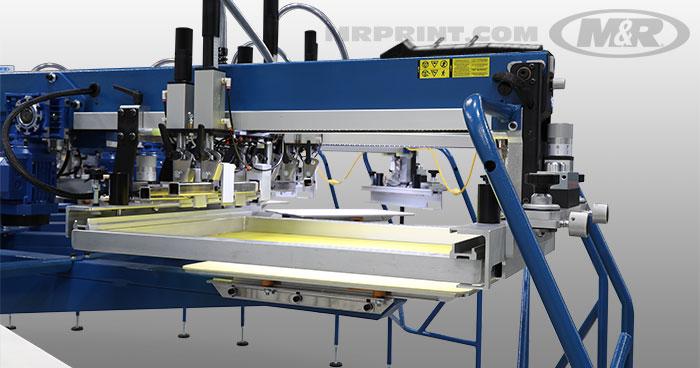

  • Advanced pallet leveling system
  • Tool-free pallet locator speeds pallet changeover
  • Tool-free quick release pallet locks
  • Brushless, maintenance-free electric-drive motors provide smooth linear movement and exceptional control
  • Membrane-switch controls enable setting of squeegee/floodbar speed settings for all printheads quickly and easily from the main HMI via copy/paste
  • Membrane-switch controls enable setting of squeegee/floodbar speed settings individually from the main HMI

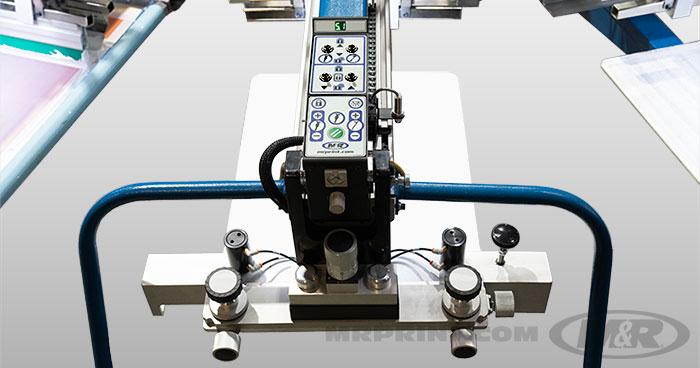

  • New membrane switch controls enable setting of squeegee/floodbar speed settings for all printheads quickly and easily from the main HMI via copy/paste and enable quicker setup and enhanced repeatability
  • New membrane-switch-based controls enable quicker setup and enhanced repeatability
  • On head off-contact adjustment
  • Compatible with M&R’s Tri-Loc® and Tri-Sync™ Rapid Registration Systems
  • Enhanced front micro-registration adjustments with visual guides
  • Automatically operates individual printheads in programmed sequence and allows multiple flashing without losing a screen printing position
  • Icon based display and logic simplifies revolver sequence programming
  • Adjustable rear screen holders accommodate a wide variety of screen sizes
  • Clamping system holds roller frames without special adapters
  • Pneumatic clamps hold frames tight and allow rapid screen loading
  • Front or rear print carriage stop position allows operator to leave screens clear or flooded (great for water-based inks)
  • Independent squeegee & floodbar speed adjustments
  • Independently set angle and calibrated pressure adjustments for squeegees and floodbars
  • Pneumatic squeegee pressure regulators
  • Pneumatic squeegee/floodbar clamps with tool-free angle adjustment
  • Visual reference marks every 5 degrees simplify squeegee/floodbar angle adjustments
  • Adjustable front and rear stroke length allows operators to optimize production speed
  • 24-hour hotline is staffed 365 days a year
  • Access to M&R’s Training Center
  • Parts & supplies are available online at
  • Two-year limited warranty
  • Designed & disassembled to fit through a 97 cm (38") doorway
  • Allows indexing of the press using a foot pedal
  • Skip-Shirt foot pedal feature allows operators to avoid screen printing on empty pallets
  • Automatically prevents the press from printing on empty pallets (U.S. Patent No. 5,383,400)
  • Reduces misprints and minimizes press stoppage because of improperly loaded shirts

Model Specification

Air @ 6,9 bar (100 psi) 396 I/min (14 cfm)
Diameter 564 cm (18' 6")
Electrical Requirements 208/230 V, 3 ph, 47 A, 50/60 Hz, 18.7 kW
380/415 V, 3 ph, 26 A, 50 Hz, 18.7 kW
Maximum Frame Size
Maximum Frame Size (Alternating Printheads) 132 x 91 cm (52" x 36")
Maximum Image Area 51 x 51 cm (20" x 20")
Maximum Image Area (Alternating Printheads) 94 x 51 cm (37" x 20")
Shipping Weight 3950 kg (8700 lb)
Standard Pallet Size 41 x 56 cm (16" x 22")
Stations/Colors 16/14
