MAVERICK™ Industrial High-Speed DTG Printing System


Downloadable Information

Product Brochure

Service & Support

Learn More
CONTROL CENTER
  • Machine-mounted control center provides ergonomic controls within reach of the pallet loading area
DESIGN & CONSTRUCTION
  • Heavy-duty, fully-welded steel chassis
  • Industrial bearing rail system and magnetic encoder provide precise carriage movement and trouble-free, long-term operation
HEATER SYSTEM
  • Quartz heaters on each side of the print carriage further speed up the white ink flash time (Patent Pending)

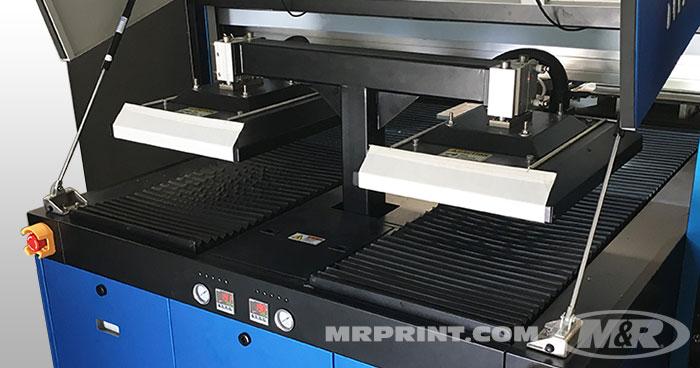

  • Two on-board, digitally-controlled heat presses not only flatten fibers, but introduce residual heat into the garments to speed up the white ink flash time

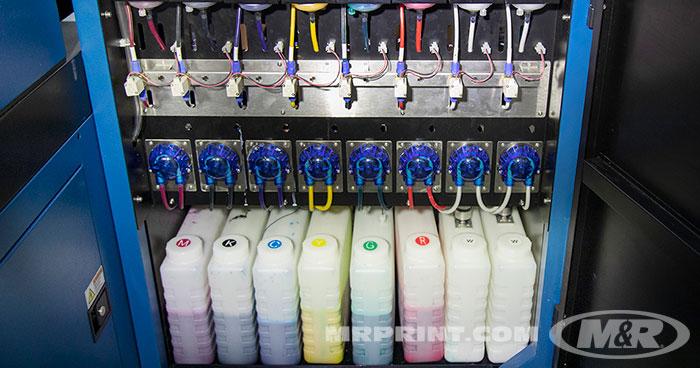

INK SYSTEM
  • 5-liter main tanks and two 5-liter white main tanks provide long run times in between refills
  • 6 printheads dedicated to White ink speed up white underbase lay down
  • Complete ink re-circulation system cycles all inks from the main tanks through the printheads and back to ensure optimum performance and consistent print results
  • Expanded color gamut built on Cyan, Magenta, Yellow, Black and additional Red and Green inks
  • The two white ink tanks implement agitators to keep the white ink from settling out, as well as a continuous full system re-circulation

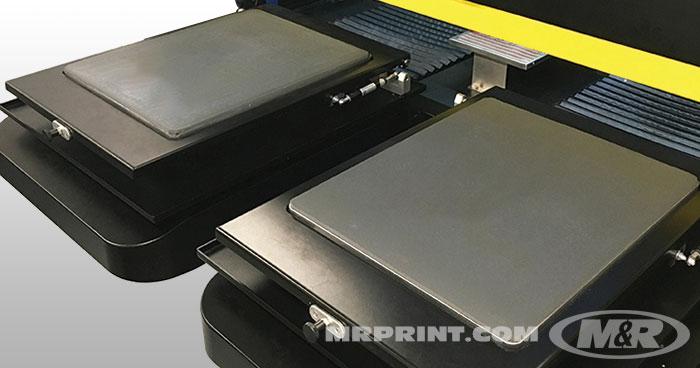

PALLET SYSTEM
  • 40.6 x 50.8 cm (16” x 20”) standard pallets
  • High-speed, dual-shuttling pallets increase productivity
  • Quick-load system with closed-cell rubber pallet covering helps secure garments ensuring the best registration possible, while eliminating the need for spray tack
PRINT SYSTEM
  • 1,280 nozzles (per head) achieve 600 DPI native resolution in single-pass mode and 600 x 1200 DPI in dual-pass mode
  • Printheads are industrial stainless steel construction for excellent durability and extended service life
  • Six color expanded color capacity provides greater color gamut and brilliance while greatly expanding the PMS color matching capabilities
  • Six industrial printheads dedicated to white ink
  • Six industrial printheads support Cyan, Magenta, Yellow, Black, Red and Green
  • Variable drop volume and droplet size improves blends and color gamut
WARRANTY, SERVICE AND SUPPORT
  • 24-hour hotline is staffed 365 days a year
  • One-year limited warranty
  • Parts & supplies are available online at mrprint.com/store
PALLETS
  • Sleeve: 13 x 51 cm (5” x 20”) / Printable Area: 10 x 48 cm (4” x 19”)
  • Youth: 25 x 51 cm (10” x 20”) / Printable Area: 23 x 48 cm (9” x 19”)

Model Specification


Air @ 6 bar (87 psi) 85 l/min (3 cfm)
Electrical Requirements 208/230 V, 3 ph, 33.5/36 A, 50/60 Hz, 14.5 kW
380/415 V, 3 ph, 17/18.5 A, 50/60 Hz, 13.5 kW
Heat Press Size 38 x 50.5 cm (15” x 19.88”)
Industrial Printheads Six Heads dedicated to white Ink
Six Heads (1 each): Cyan, Magenta, Yellow, Black, Red and Green
Maximum Image Area 38 x 48.25 cm (15” x 19”)
Overall Size (H x W x D) 190 x 305 x 229 cm (75” x 120” x 90”)
Shipping Weight 1597 kg (3520 lb)
Standard Pallet Size 40.6 x 50.8 cm (16” x 20”)
