IC-120™ Incline Conveyor


Downloadable Information

IC-120 Incline Conveyor Brochure

Service & Support

Learn More
CERTIFICATION
  • CE Certified: Built to specifications established by the European Committee for Standardization® (CE)
  • UL Listed: Built to specifications established by Underwriters Laboratories® (UL)
CONVEYOR SYSTEM

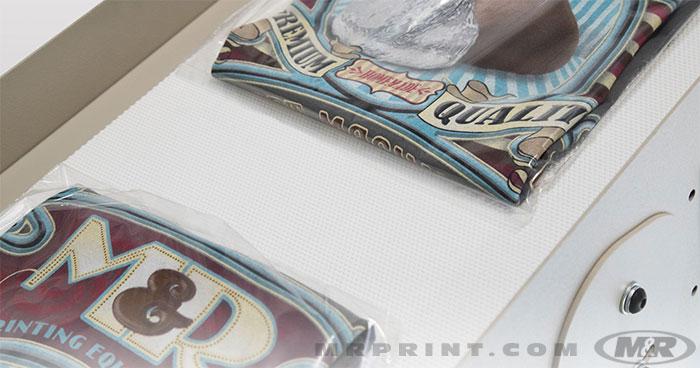

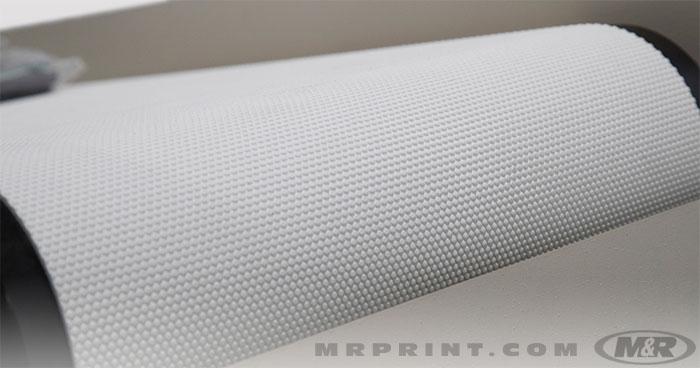

  • Textured belt ensures positive material transfer without shifting or slipping
  • Tool free adjustable legs allow quick conveyor height adjustment to fit in-feed and out-feed requirements
DESIGN & CONSTRUCTION
  • Designed to be easily moved and setup quickly wherever conveyor operations are needed in production
  • Industrial locking castors make it easy to move and setup where needed
  • Powder-coated steel, and industrial components for long life dependability
WARRANTY, SERVICE AND SUPPORT
  • 24-hour hotline is staffed 365 days a year
  • One-year limited warranty
  • Parts & supplies are available online at mrprint.com/store
AUTO COUNTER

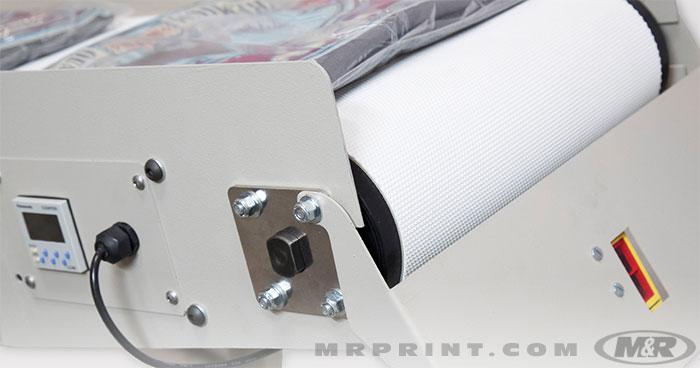

  • Automatically stops the conveyor when the set count is reached
CONVEYOR
  • 46 cm (18”) belt width available
LABELING INTEGRATION
  • Contact M&R for a custom quote to match your needs

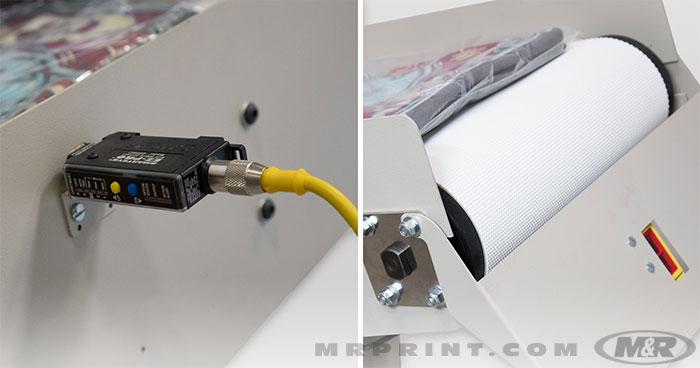

  • Sensor mounting points allow for easy integration with label applicator or print and apply systems

Model Specification


Belt Speed @ 81 RPM 28.65 meters/min (94 feet/min)
Discharge Height (Min/Max) 108/130 cm (42.5”/51.5”)
Electrical Requirements 110/115 V, 1 ph, 5 A, 50/60 Hz, 0.55 kW
208/230 V, 1 ph, 2.5 A, 50/60 Hz, 0.55 kW
Overall Size (L x W x H) 224 x 43 x 113 cm (88” x 17” x 45”)
Shipping Weight 91 kg (200 lb)
