New KRUZER™ Manual Screen Printing Press

Downloadable Information

Product Brochure

Service & Support

Learn More
  • Designed & disassembled to fit through a 78 cm (31") doorway
  • Heavy-duty tapered roller bearings
  • Machine-tooled and polished center shaft
  • Precise three-point pallet leveling system
  • Tool-free quick release pallet locks
  • Solid-aluminum, low-profile, rubber-coated screen printing pallets
  • Standard sizes are interchangeable with M&R automatic screen printing presses
  • Compatible with M&R’s Tri-Loc® Rapid Registration System

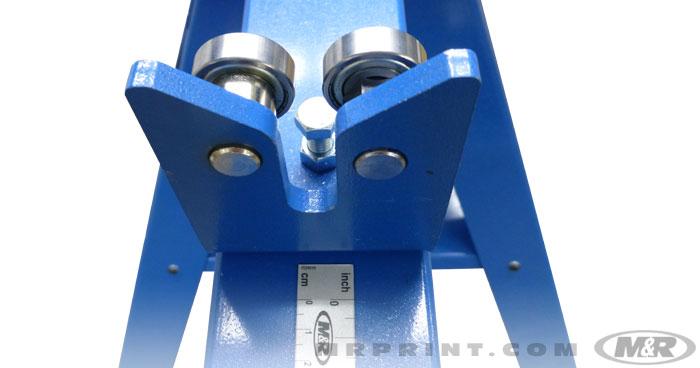

  • Hardened steel roller registration bearings provide excellent performance and durability

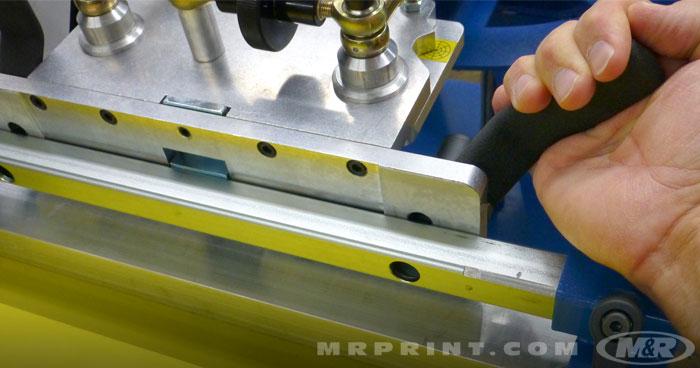

  • Lever-adjusted off-contact system operates vertically, eliminating the need for a separate angle adjustment

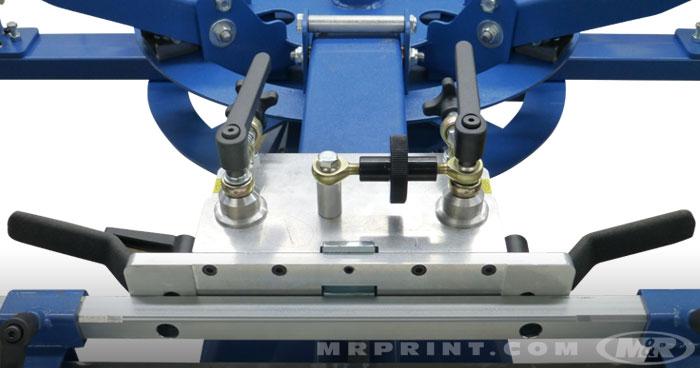

  • Micro-registration with zero set point guides
  • V-Guide locator system
  • Accommodate most frame types and manage screen sizes up to 58 cm (23”) wide
  • Enclosed spring system accommodates a wide variety of screen types, sizes, and weights
  • 24-hour hotline is staffed 365 days a year
  • Access to M&R’s Training Center
  • Parts & supplies are available online at
  • Two-year limited warranty
  • Warranty includes the option of returning the press during the first year of ownership for full credit toward the purchase price of any new M&R automatic screen printing press (terms & conditions apply*)

    *Terms & Conditions: Normal wear and tear is acceptable, but the press must be returned in sound working order and without damage from abuse or misuse. The amount applied to the purchase of a new automatic press is limited to the price paid for the manual press. Crating, shipping, taxes, and other fees—as well as return shipping costs—are excluded.
  • Simplifies screen printing lined jackets, reversible/double layer mesh-type jerseys, and other multi-layer garments
  • M&R aluminum pallets and platens come in a wide range of sizes and styles

Model Specification

Diameter 243 cm (8’)
Maximum Image Area 41 x 46" (16" x 18")
Maximum Screen Width 58 cm (23”)
Shipping Weight 204 kg (450 lb)
Standard Pallet Size 38 x 41 cm (15” x 16”)
Stations/Colors 4/6

Customer Reviews

There are no reviews for this equipment.Be the first one to write a review.

Exceptional products and outstanding support

We remain the worlds largest manufacturer of screen printing equipment because weve held to the standards M&R was founded on: Innovative Design, Quality Products, and Unmatched Customer Support. With sales associates, distributors, and technicians in over 40 countries on six continents, we have the largest network of sales and support in the industry. And our technical support is available 24 hours a day, every day of the year. Wherever you are, whatever you need, well be there for you.
