PROCESSOR II E™ In-line Graphics Screen Printing Press


Documents

Product Brochure

Service & Support

Learn More
CERTIFICATION
  • CE Certified: Built to specifications established by the European Committee for Standardization® (CE)
COLOR CAPACITY
  • 2-6 colors (4 colors standard)
CONTROL CENTER
  • All printhead and UV controls—including central off-contact, stroke length, and ink dip—are available at the main control panel and at each printhead
  • Control panel is easy to navigate, with programming and prompts in plain language
  • Digital microprocessor with self-diagnostics
  • Dwell and load station vacuum times are independently managed from the control panel
  • Flood/non-flood setting allows screens to be flooded or left unflooded after each print cycle
  • Foot pedal pauses machine cycle, releases vacuum at the load table, and keeps paper locators firmly against the vacuum bed
  • Job Recall™ allows storage and recall of numerous standard and optional functions and settings, including electronically controlled dwell time, index speed, off-contact, peel ratio, print stroke and flood stroke length & speed, squeegee pressure (electronically adjusted air pressure), and wattage settings on UV cure units
  • Master touch-screen control panels at the load and unload stations, with secondary touch-screen panels at each printhead
  • Press can index in either direction so that during proofing the operator can alter the order of screen/color application on test prints without having to tear down and set up for each variation
  • Production speed monitor ensures more accurate job costing
  • Touch screen panel with alphanumeric display at the main station and digital keypads with LCD display at each print station
CURE SYSTEM
  • Delivers optimal cure to heat-sensitive and heat-resistant stock
  • Digital elapsed time meter monitors lamp life
  • Dual UV lamps feature recallable settings and are independently controlled
  • Lamp controllers are located at each print station and at the main control panel
  • Pneumatically-operated housings simplify maintenance and lamp changing
  • UV heads are independently controlled
DESIGN & CONSTRUCTION
  • Automatic oiler for chains and rails
  • Designed for everything from poly banner material to heavy board stock
  • Maintenance-free servo motors
  • Printheads maintain machine registration with four-post locking
INDEX SYSTEM
  • Servo-driven index ensures accurate, smooth travel
INK DIP SYSTEM
  • Electronically adjustable ink retrieval system keeps ink in the print area. See it in action!

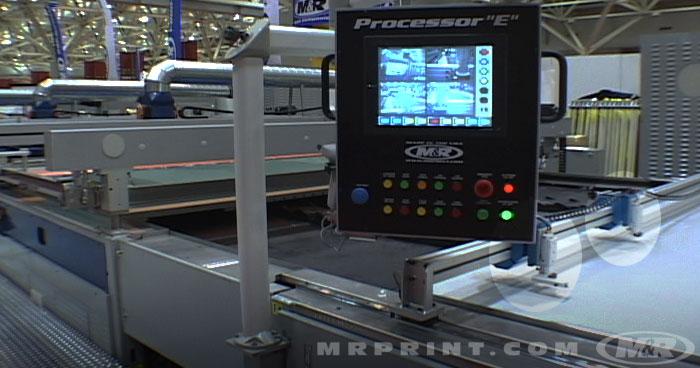

LOAD STATION
  • Above-table double-sided sheet locator allows operator to load from any corner for double-sided work
  • Moveable load table simplifies the loading of smaller substrates
OFF-CONTACT
  • Tool-free four-corner off-contact settings allow quick and accurate screen leveling
  • Zero off-contact capability increases control over print quality
PEEL SYSTEM
  • Electronic peel starts at zero from the starting position of the print stroke
  • Flat-flood capability
  • Infinitely adjustable within range

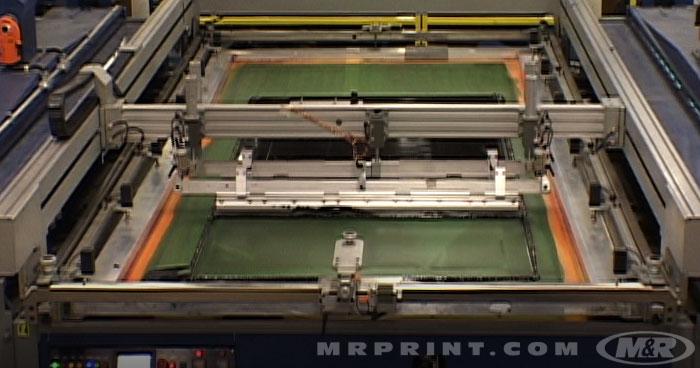

PRINT CARRIAGE
  • Carriage high lift setting allows users to unload screens while leaving squeegees and floodbars in the press, reducing setup and teardown times
  • Center cylinder provides uniform pressure across the carriage
  • Digital readout for print/flood speed adjustments in percentage format
  • Dynamic braking prevents the print carriage from drifting into the printing area
  • Independent drives for print carriage and head lift
  • Servo-driven carriage insures accurate, smooth travel
  • Stroke length can be adjusted at the printhead or at the main control panel
REGISTRATION
  • Inline indexing table maintains precise registration throughout the printing and curing cycles
  • Master frame with micro-registration adjustments and visual guides allow quick and easy setup
  • Proprietary locator system for high-tolerance printing
SCREEN CLAMPS & HOLDERS
  • Adjustable rear screen holders accommodate a wide variety of screen sizes
  • Front screen loading for fast screen changes
  • Pneumatic screen clamps
SQUEEGEE/FLOODBAR
  • Calibrated independent and micro-adjustable pressure settings
  • Dripless squeegee attachment automatically flips to the opposite direction against the front of the floodbar before the flood stroke begins, preventing ink from dripping into the image area
  • Electronic and recallable adjustable pneumatic squeegee pressure equalizer maintains uniform pressure across the length of the squeegee
  • Electronic settings for print stroke length and flood stroke length eliminate the need for flags & proximity switches
  • Park position simplifies squeegee and floodbar installation and removal, and allows flood and squeegee to be raised and moved to the front or rear without flooding or printing
  • Pneumatic squeegee/floodbar locks with tool-free angle adjustment
  • Squeegee and floodbar traverse speeds can be set individually
  • Tool-free pneumatic squeegee/floodbar locks
  • Tool-free pressure and angle adjustments are independently set
  • Traverse speeds are digitally displayed as percentages

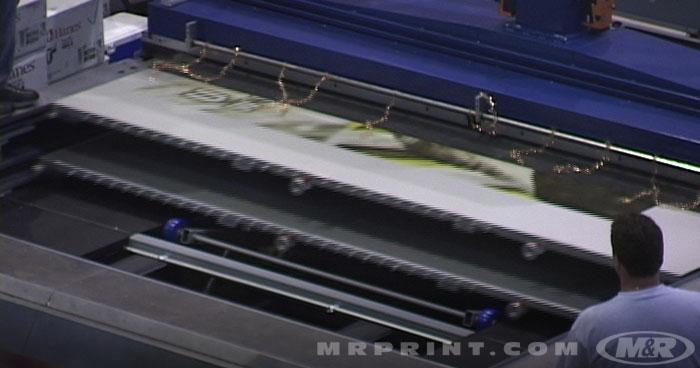

VACUUM SYSTEM
  • 5.08 cm (2”) thick heavy-gauge anodized aluminum vacuum bed is drilled using computerized numerical control (CNC)
  • Adjustable vacuum at load station aids operator in loading stock
  • High-volume vacuum turbine system easily adjusts to different stock type and thickness
  • Vacuum and blowback are each independent and adjustable
  • Vacuum track holds substrates securely during print and high-speed transport operations
WARRANTY, SERVICE AND SUPPORT
  • 24-hour hotline is staffed 365 days a year
  • Access to M&R’s Training Center
  • One-year limited warranty
  • Parts & supplies are available online at store.mrprint.com

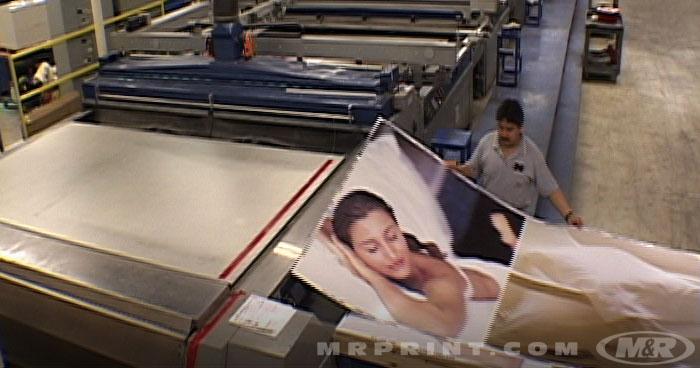

AUTOMATIC TAKEOFF
  • M&R’s Heritage™ is a fully adjustable suction-style takeoff that adapts to virtually any substrate
VACUUM SYSTEM
  • Zoned vacuum beds allow operators to limit vacuum to the area under the substrate

Model Specification

Compare

Air @ 6,9 bar (100 psi) 1133 l/min (40 cfm)
Electrical Requirements 400 V, 3 ph, 543 A, 50 Hz, 295 kW
460 V, 3 ph, 472 A, 60 Hz, 295 kW
Length of Additional Print/Cure Stations 361 cm (142”)
Maximum Frame Size 208 x 269 x 6.4 cm (82” x 106” x 2.5”)
Maximum Image Area 163 x 203 cm (64” x 80”)
Overall Size 2256 x 366 x 163 cm (74’ x 12' x 64”)
Print/UV Cure Stations 2-6
UV Lamps 4-12
