New ECO-TEX™ LITE Automatic Screen Cleaning and Reclaiming System

Downloadable Information

Product Brochure

Service & Support

Learn More
  • CE Certified: Built to specifications established by the European Committee for Standardization® (CE)
  • UL Listed: Built to specifications established by Underwriters Laboratories® (UL)

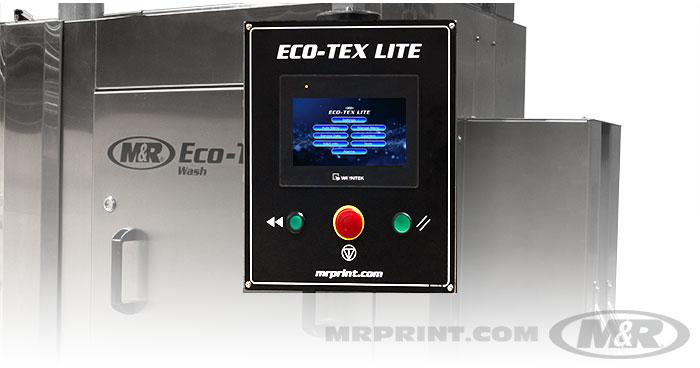

  • Digital touchscreen control panel with onboard self-diagnostics controls all machine functions
  • Emulsion-removal chemical dose pump offers touchscreen control over programmable additions of concentrated solution to maintain cleaning effectiveness
  • All stainless-steel construction

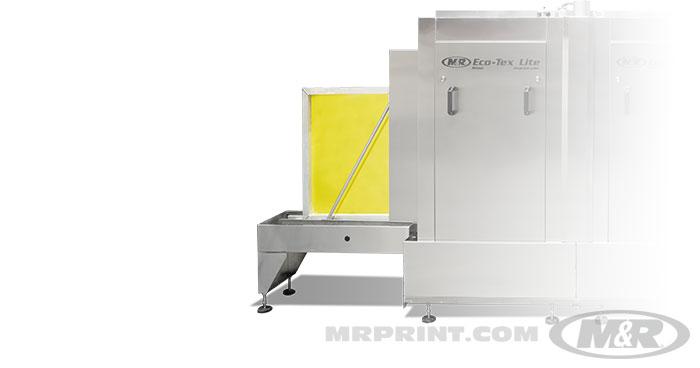

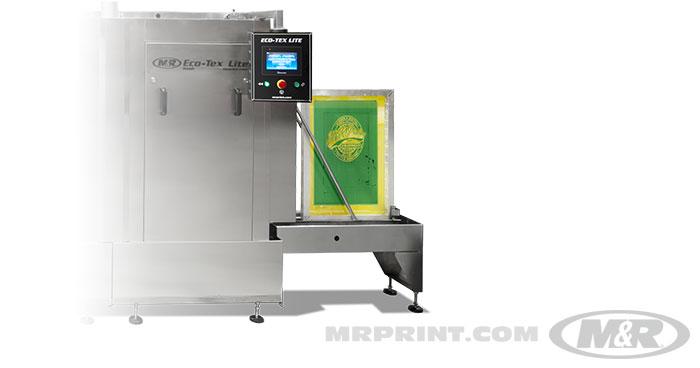

  • Automatic screen loading and unloading simplifies operation and minimizes labor requirements
  • Cleans two standard textile screen frame sizes: 63.5 x 78.7 cm (23” x 31”) and 66 x 91.4 cm (26” x 36”)
  • 24-hour hotline is staffed 365 days a year
  • One-year limited warranty
  • Parts & supplies are available online at

Model Specification

Air @ 5,5 bar (80 psi) 142 l/min (5 cfm)
Electrical Requirements 208/230 V, 3 ph, 65 A, 60Hz, 15 kW
Exhaust Requirements 10 cm (4") ducts x2
Maximum Screen Frame Size 66 x 91 cm (26" x 36")
Overall Size (W x D x H) 483 x 125 x 175.5 cm (190" x 49.5" x 69")
Shipping Weight 1548 kg (3411 lb)
