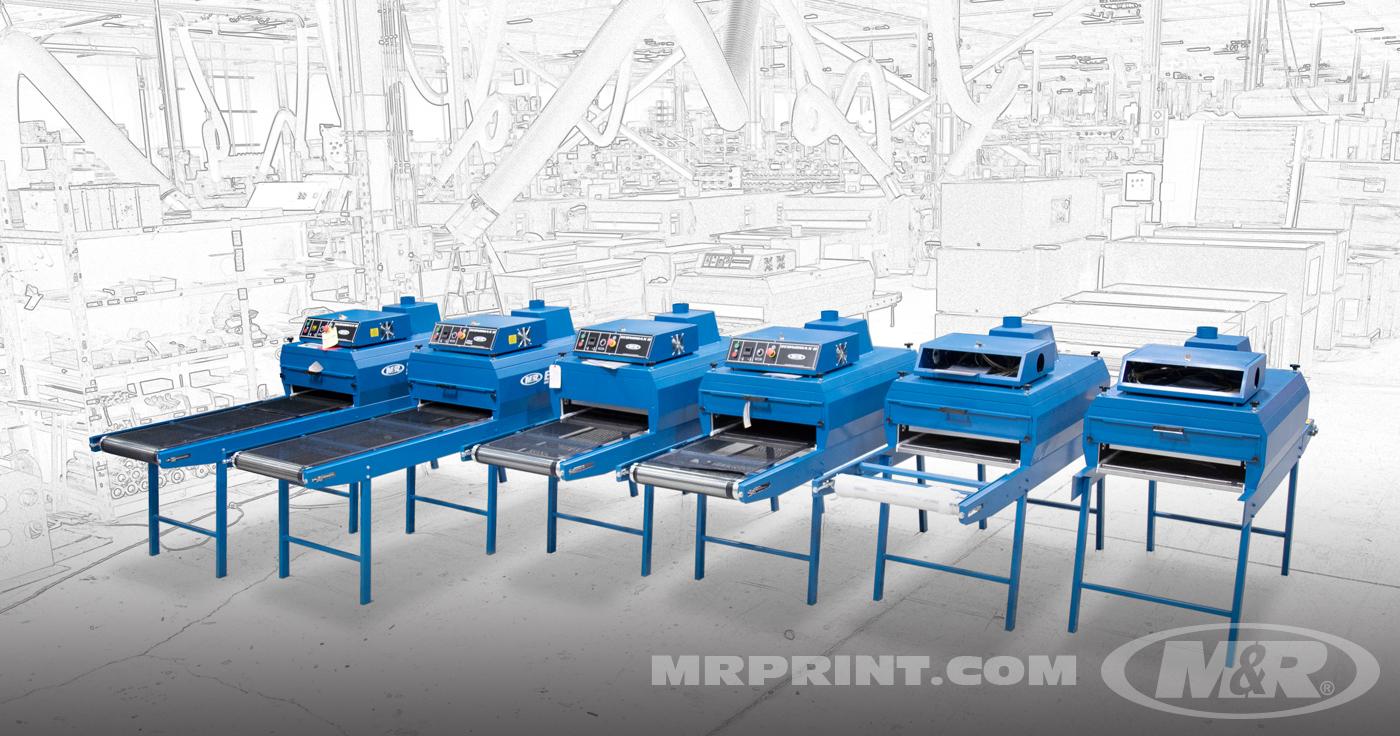

ECONOMAX D™ Electric Screen Printing Conveyor Dryer


Downloadable Information

Product Brochure

Service & Support

Learn More
AIR HANDLING
  • Adjustable air displacement and evacuation systems
CERTIFICATION
  • CE & UL compliant: Built to specifications established by the European Committee for Standardization® (CE) and Underwriters Laboratories® (UL)

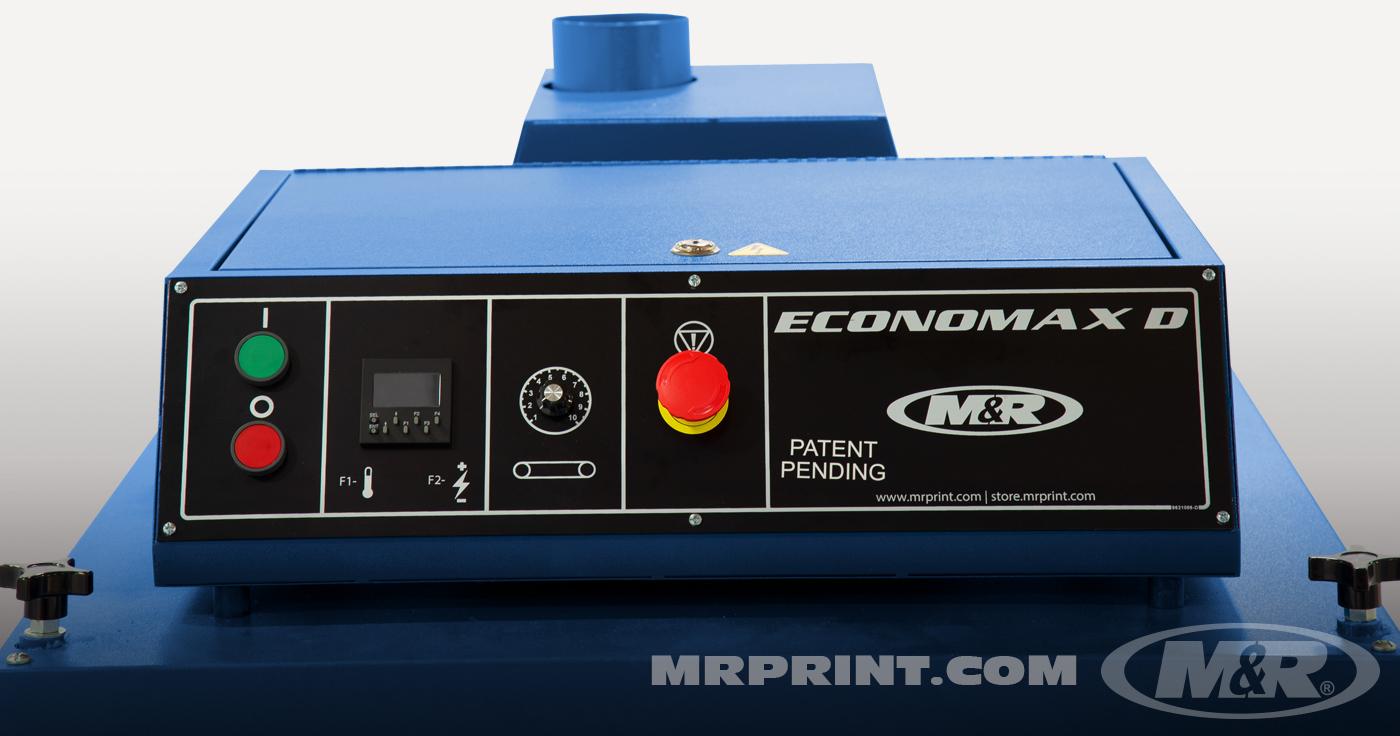

CONTROL CENTER
  • Automatic shutdown sequence keeps the blower and belt running until the dryer chamber has cooled
  • Digital keypad with digital display
  • PID control allows the conveyor dryer to power up gradually to avoid maximum amperage loads during initial warmup
  • PID control helps maintain even temperatures during screen printing production runs by phasing on and off rather than using the full-load/no-load approach
CONVEYOR SYSTEM
  • Automatic shutdown sequence keeps the blowers and belt running until the chamber has cooled
  • Driven by a reliable, heavy-duty, variable-speed DC motor
  • Patriot Belt™ with the SureTrak™ roller system features a heat-resistant, Teflon®-coated fiberglass belt with a red flexible bead stitched along one edge that rides in grooves machined into the large anodized aluminum rollers, providing the most precise belt tracking available (U.S. Patents Pending: SN 15194035 & 15265538)
DESIGN & CONSTRUCTION
  • Adjustable infeed and outfeed openings
  • Air-cooled cabinet ensures long life for electrical components
  • Bearings are designed for high speeds and high temperatures

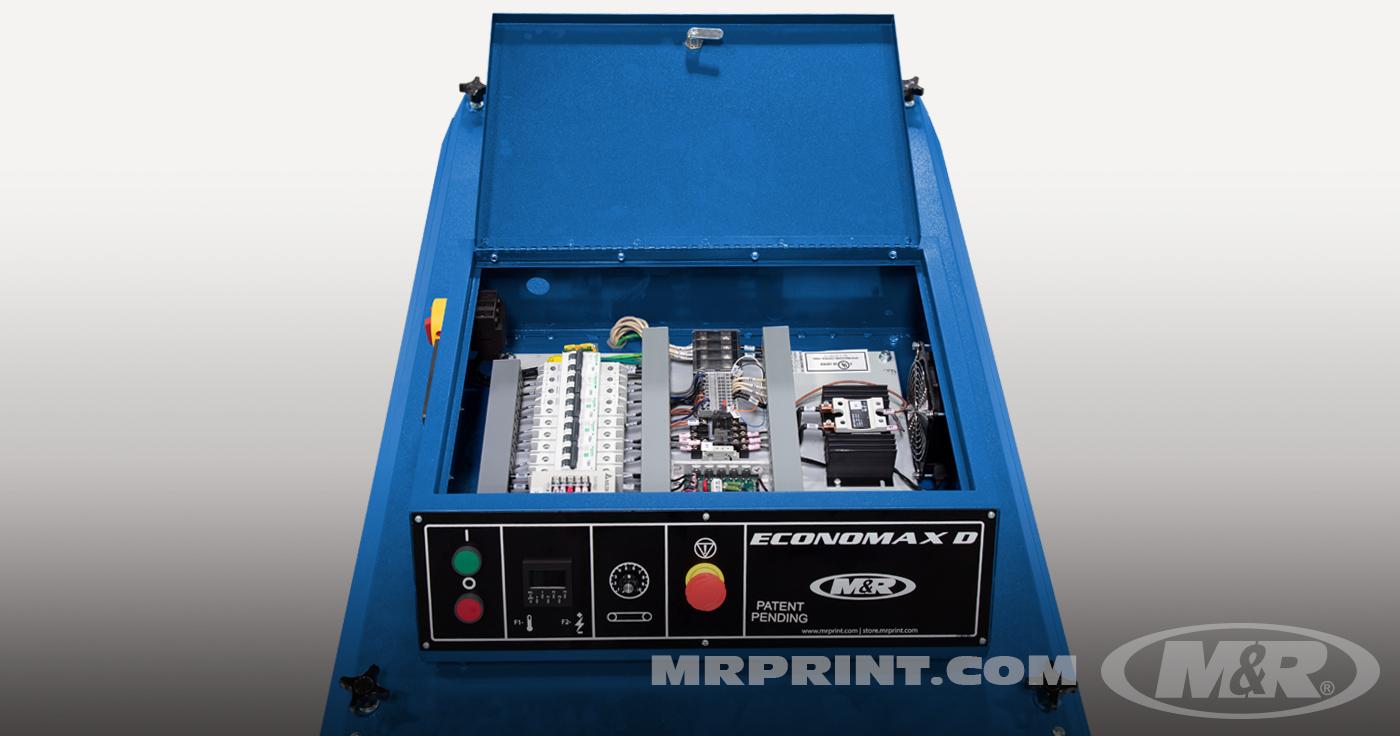

  • Circuit breakers allow easy reset
  • Low-profile design makes it easier to see over the screen printing dryer
  • On its side with legs folded, Economax D can fit through a 78 cm (31”) doorway
ENERGY EFFICIENCY
  • CoolSkin™ technology leaves the conveyor dryer skin cool to the touch
  • Economax D is the most energy-efficient electric screen printing conveyor dryer in its class
  • Fast curing rates and high product throughput maximize conveyor dryer capacity and minimize per-unit cost
  • Heavy-duty thermal insulation prevents heat from migrating from the conveyor dryer into the workplace
  • PID control ensures consistency by keeping dryer chamber heat within 1° of target temperature at the thermocouple
  • Process temperature and set temperature are displayed and controlled digitally
HEAT CHAMBER
  • Infrared radiant panel array

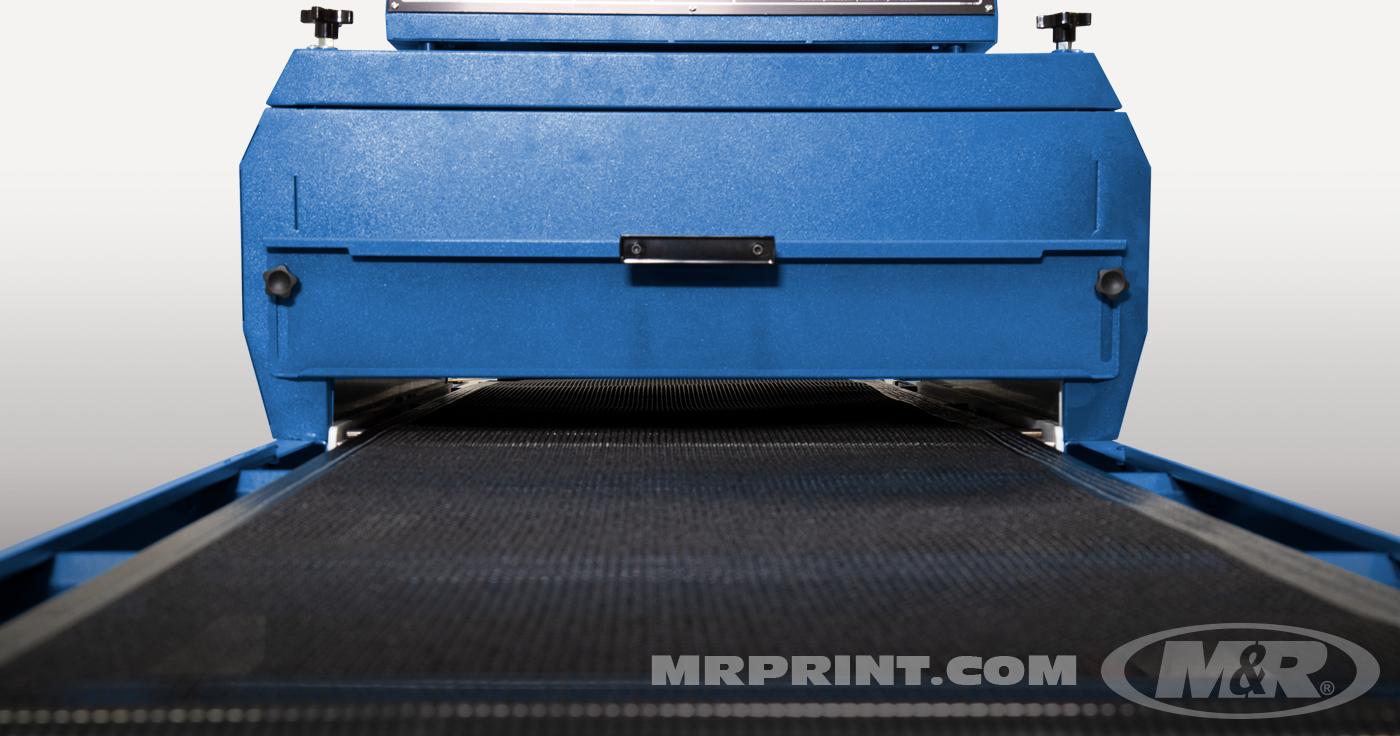

  • Tool-Free radiant panel adjustment
PRODUCTIVITY
  • Economax D has the highest production capacity of any electric screen printing conveyor dryer in its class
WARRANTY, SERVICE AND SUPPORT
  • 24-hour hotline is staffed 365 days a year
  • Parts & supplies are available online at mrprint.com/store
  • Two-year limited warranty
CONVEYOR SYSTEM

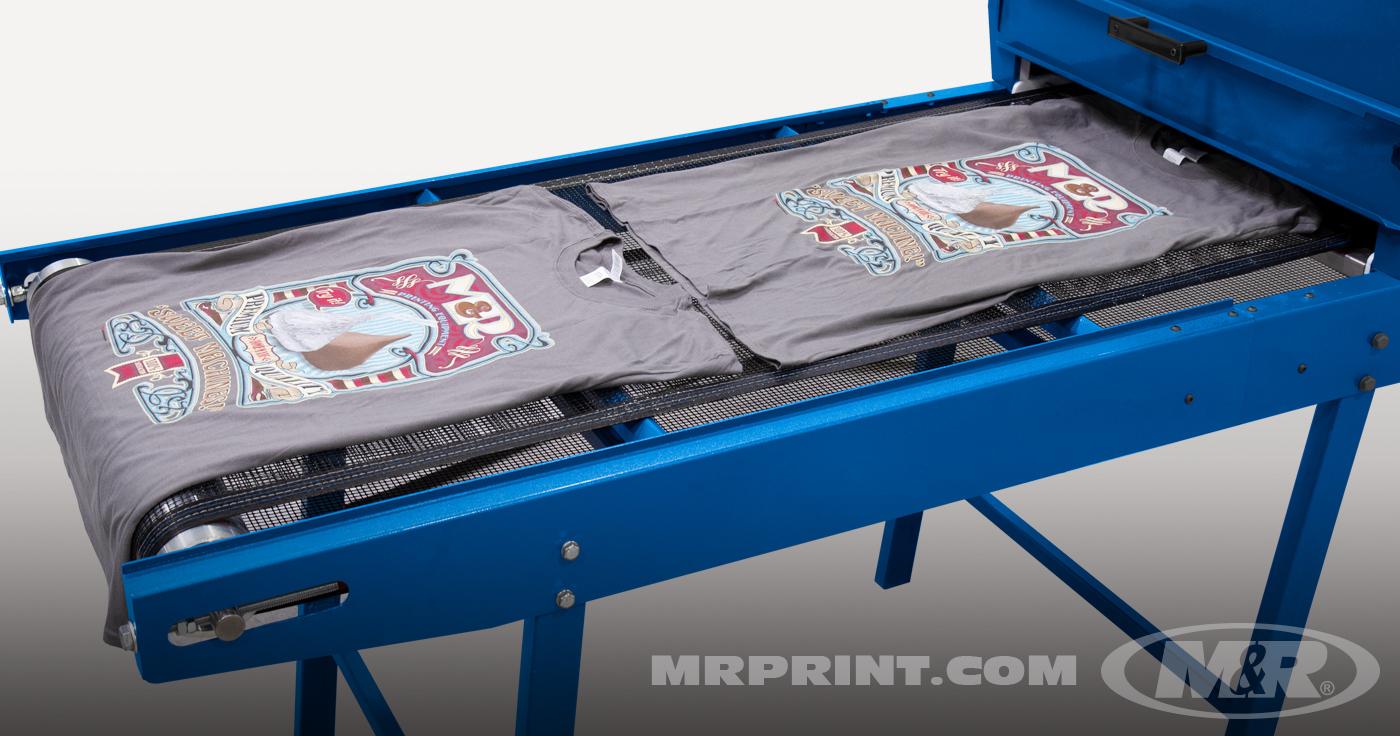

  • Conveyor dryer infeed can be extended by 60 cm (24”)
DESIGN & CONSTRUCTION
  • Short legs are available for tabletop use
HEAT CHAMBER
  • Third radiant panel increases electric conveyor dryer productivity

Model Specification


Belt Width 61 cm (24")
Electrical Requirements 208/230 V, 1 ph, 26/28 A, 50/60 Hz, 5 kW
208/230 V, 3 ph, 15/17 A, 50/60 Hz, 5 kW
380/415 V, 3 ph, 8/10 A, 50 Hz, 5 kW
Exhaust Blower System 10 cm (4"): 3964 l/min (140 cfm) @ 3 mm (1/8")
Heat Chamber Length 114 cm (45")
Overall Length 239 cm (94")
Overall Width 84 cm (33")
Radiant Panels 2
Shipping Weight 218 kg (480 lb)
Standard Infeed Length 76 cm (30")
Standard Outfeed Length 48 cm (19")
