SIDEWINDER™ Manual Screen Printing Press


Downloadable Information

Product Brochure

Service & Support

Learn More

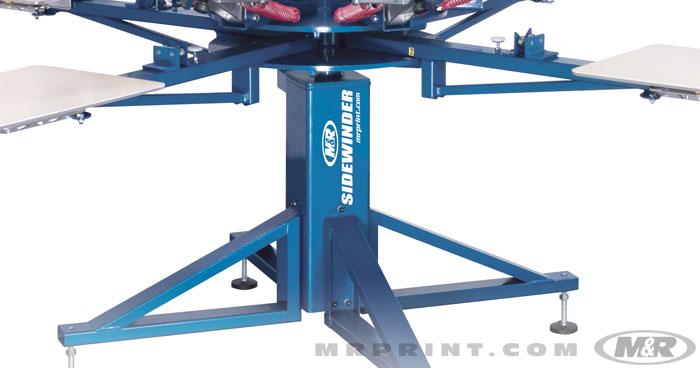

DESIGN & CONSTRUCTION
  • Heavy-duty roller bearings
  • Machine-tooled and polished 7.62 cm (3”) center shaft
PALLET SYSTEM
  • Precise three-point pallet leveling system
  • Tool-free quick release pallet locks
PALLETS
  • Solid-aluminum, low-profile, rubber-coated screen printing pallets
  • Standard sizes are interchangeable with M&R automatic screen printing presses
REGISTRATION
  • Compatible with M&R’s Tri-Loc® & Double Tri-Loc® Rapid Registration Systems

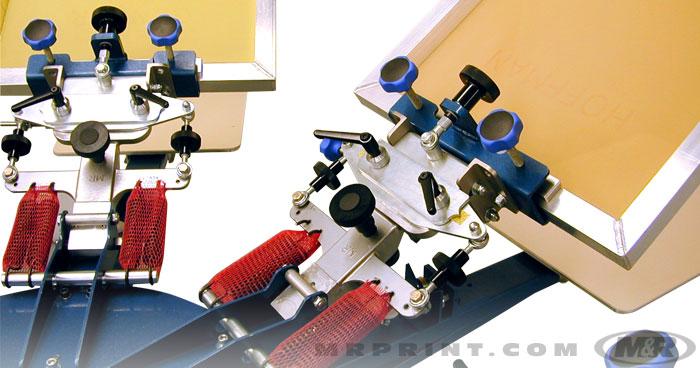

  • Micro-registration with zero set point guides
  • Multi-axis registration with dual off-contact adjustment
  • V-Guide locator system
SCREEN CLAMPS & HOLDERS
  • Accommodate most frame types and manage screen sizes up to 64 cm (25”) wide
  • Rear screen holders accommodate a wide variety of screen sizes
SPRING TENSION SYSTEM
  • Accommodates a wide variety of screen types, sizes, and weights
WARRANTY, SERVICE AND SUPPORT
  • 24-hour hotline is staffed 365 days a year
  • Access to M&R’s Training Center
  • Parts & supplies are available online at store.mrprint.com
  • Two-year limited warranty
  • Warranty includes the option of returning the press during the first year of ownership for full credit toward the purchase price of any new M&R automatic screen printing press (terms & conditions apply*)

    *Terms & Conditions: Normal wear and tear is acceptable, but the press must be returned in sound working order and without damage from abuse or misuse. The amount applied to the purchase of a new automatic press is limited to the price paid for the manual press. Crating, shipping, taxes, and other fees—as well as return shipping costs—are excluded.
ALL-HEADS-DOWN
  • Factory pre-set feature allows simultaneous screen printing at all stations
JACKET HOLD-DOWN PALLET
  • Simplifies screen printing lined jackets, reversible/double layer mesh-type jerseys, and other multi-layer garments
PALLET SUPPORT ARM (SHORT)
  • 20 cm (8”) shorter than standard pallet arms
  • Designed for screen frames smaller than 58 x 75 cm (23” x 31”)
  • Recommended pallet size for short pallet arms: 38 x 41 cm (15” x 16”)
PALLETS
  • M&R aluminum pallets and platens come in a wide range of sizes and styles

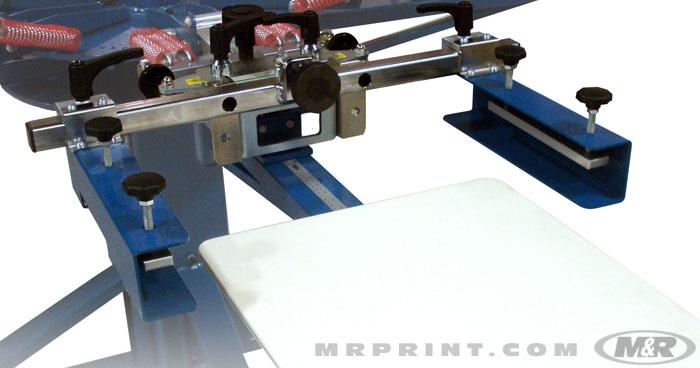

SCREEN CLAMPS & HOLDERS
  • Heavy-duty side clamps are fully adjustable, simplify roller frame use, and accommodate a wide range of screen sizes (recommended for screens 76 cm (30”) or more in length)
  • Pneumatic clamps hold frames tight and allow rapid screen loading
  • Side clamps are recommended for the use of Tri-Loc® and Double Tri-Loc® Rapid Registration Systems and M&R’s Triple-Play Pallet
--END--

Model Specification

Compare

Diameter (Short Arm) 263 cm
(8’ 8”)
Diameter (Standard Arm) 299 cm
(9’ 9”)
Maximum Frame Size 64 x 91 x 5 cm
(25” x 36” x 2”)
Maximum Image Area 51 x 76 cm
(20" x 30")
Shipping Weight 386 kg
(850 lb)
Standard Pallet Size 41 x 56 cm (16" x 22") or
38 x 41 cm (15" x 16")
Stations/Colors 4/4
