FUSION™ Electric Screen Printing Conveyor Dryer

Downloadable Information

Product Brochure

Service & Support

Learn More
  • Adjustable air displacement and evacuation systems
  • CE Certified: Built to specifications established by the European Committee for Standardization® (CE)
  • UL Listed: Built to specifications established by Underwriters Laboratories® (UL)
  • Automatic shutdown sequence keeps the blower and belt running until the conveyor dryer chamber has cooled

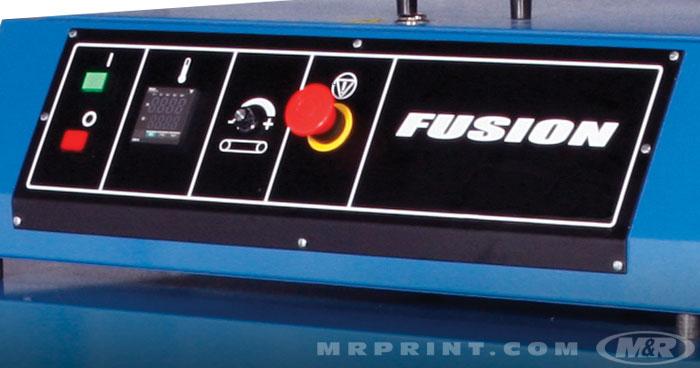

  • Digital keypad with digital display
  • Driven by a reliable, heavy-duty, variable-speed DC motor

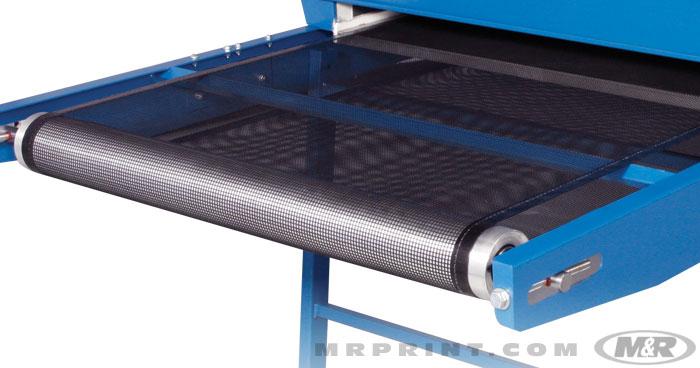

  • The Patriot Belt™ is made of heat-resistant, Teflon®-coated fiberglass
  • The red flexible bead stitched along one edge of the Patriot Belt™ rides in grooves machined into the large anodized aluminum SureTrak™ Rollers, providing the most precise belt tracking available (U.S. Patent Pending)
  • Adjustable entry/exit openings
  • Air-cooled cabinet ensures long life for electrical components
  • Circuit breakers allow easy reset
  • Low-profile design makes it easier to see over the screen printing dryer
  • On its side with legs folded, Fusion can fit through a 78 cm (31”) doorway
  • CoolSkin™ technology leaves the conveyor dryer skin cool to the touch
  • Fast curing rates and high product throughput maximize conveyor dryer capacity and minimize per-unit cost
  • Fusion is the most energy-efficient electric screen printing conveyor dryer in its class
  • Fuzzy-Logic controller ensures consistency by keeping dryer chamber heat within 1° of target temperature at the thermocouple
  • Heavy-duty thermal insulation prevents heat from migrating from the conveyor dryer into the workplace
  • Process temperature and set temperature are displayed and controlled digitally
  • Infrared radiant panel array
  • Radiant panels are height adjustable
  • Fusion has the highest production capacity of any electric screen printing conveyor dryer in its class
  • Sizes to fit most production needs from manual to automatic screen printing
  • 24-hour hotline is staffed 365 days a year
  • Access to M&R’s Training Center
  • Parts & supplies are available online at store.mrprint.com
  • Two-year limited warranty
  • Conveyor extension sections are available in 30 cm (12") increments
  • 36-6-3 models are optionally available with pre-wiring for a fourth radiant panel

Model Specification

Belt Width 91 cm (36”)
Electrical Requirements 208/230 V, 1 ph, 60/63 A, 50/60 Hz, 12 kW
208/230 V, 3 ph, 34/37 A, 50/60 Hz, 12 kW
380/415 V, 3 ph, 22 A, 50/60 Hz, 12 kW
Exhaust Blower Size 10 cm (4”)
Exhaust System Capacity @ 3 mm (1/8”) Static Pressure 4531 l/min (160 cfm)
Heat Chamber Length 183 cm (72”)
Overall Length 320 cm (126”)
Overall Width 114 cm (44.75”)
Radiant Panels 3
Shipping Weight 408 kg (900 lb)
Standard Infeed Length 76 cm (30")
Standard Outfeed Length 61 cm (24")
