New SPRINT® 3000 DHZ Gas Screen Printing Conveyor Dryer with Dual Heat Zones

Downloadable Information

Product Brochure

Service & Support

Learn More
  • Enhanced airflow accelerates drying/curing
  • Four separate dedicated blowers (combustion, circulation, exhaust & outfeed hood exhaust)
  • High-volume circulation blower reduces energy costs
  • Integrated roll-down outfeed hood with exhaust blower
  • Stainless steel filter slides out for easy cleaning
  • CE Certified: Built to specifications established by the European Committee for Standardization® (CE)
  • CSA Certified: Built to specifications established by the CSA Group (models sold in Australia are AGA Certified: Built to specifications established by the Australian Gas Association)
  • UL Listed: Built to specifications established by Underwriters Laboratories® (UL)
  • Displays key operational information—including heat chamber temperature and retention time—and gives operators complete control of all screen printing conveyor dryer functions

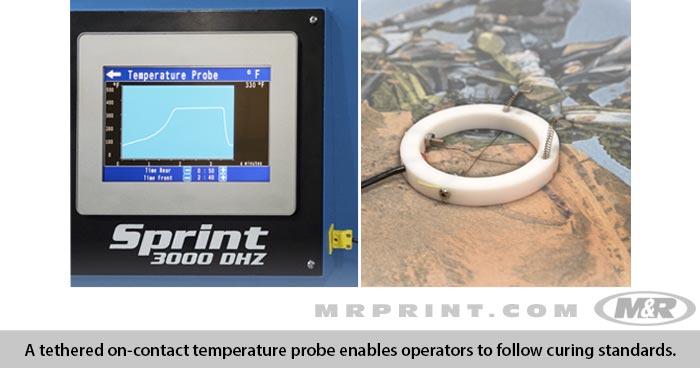

  • Graphic display tracks dryer temperature and substrate temperature in real time
  • Job Recall™ allows operators to store operational parameters under operator-chosen alphanumeric names—and recall those named settings later for similar substrate/ink combinations
  • Maintenance Minder™ system alerts operators when scheduled maintenance is due
  • Temperature monitor issues visible and audible alarms when readings fall outside user-specified parameters
  • Tower light indicates when temperatures are within user-set tolerances
  • AccuSet™ retention-time belt-speed controller makes it easy to duplicate settings and eliminates the need to convert feet per minute into the time substrates will spend in the heat chamber (U.S. Patent Pending: SN 13967564)
  • Automatic shutdown sequence keeps the blowers and belt running until the chamber has cooled
  • Crossover™ Belt System (U.S. Patent Pending: SN 15264277)
  • Driven by a reliable, heavy-duty, variable-frequency AC-drive motor
  • Patriot Belt™ with the SureTrak™ roller system features a heat-resistant, Teflon®-coated fiberglass belt with a red flexible bead stitched along one edge that rides in grooves machined into the large anodized aluminum rollers, providing the most precise belt tracking available (U.S. Patents Pending: SN 15194035 & 15265538)
  • Each Patriot Belt has a tracking bead matched to a corresponding SureTrak groove in the drive cylinder
  • M&R’s AccuSet retention-time belt-speed controller, coupled with M&R’s Patriot Belt/SureTrak belt-tracking system and Sprint 3000’s precise variable-frequency AC drive motors make it possible to change belt directions and speeds instantly without the need to re-track belts or recalibrate speeds
  • On Crossover Belt Systems, Job Recall allows users to create, store, and retrieve job recipes that contain heat-chamber temperature and direction and speed settings for each belt, making setup for repeat and similar drying scenarios a snap
  • Previously lost space between belts has been reduced and belts widened due to M&R’s superior belt-tracking methods
  • Adjustable infeed and outfeed openings
  • Air-cooled cabinet ensures long life for electrical components
  • Bearings are designed for high speeds and high temperatures
  • Circuit breakers allow easy reset
  • Cleanout access panels on the sides of the burner sections and drone modules simplify cleaning and maintenance
  • Exhaust Drawer/Creosote Catcher
  • Low-profile design makes it easier to see over the screen printing dryer
  • Burners are designed with excess capacity that far exceeds consumption rates under normal operating conditions
  • CoolSkin™ technology leaves the conveyor dryer skin cool to the touch
  • Fast curing rates and high product throughput maximize conveyor dryer capacity and minimize per-unit cost
  • Fuzzy-Logic controller ensures consistency by keeping dryer chamber heat within 1° of target temperature at the thermocouple
  • Heavy-duty thermal insulation prevents heat from migrating from the conveyor dryer into the workplace
  • Pressurized vector air knives provide consistent and uniform temperatures throughout the drying chamber
  • Sprint 3000 models are the most energy-efficient gas screen printing conveyor dryers in their class
  • The ability to run only one heating zone dramatically decreases energy costs when both zones aren’t required
  • Burners are available for liquid propane (LP) or natural gas (NG)

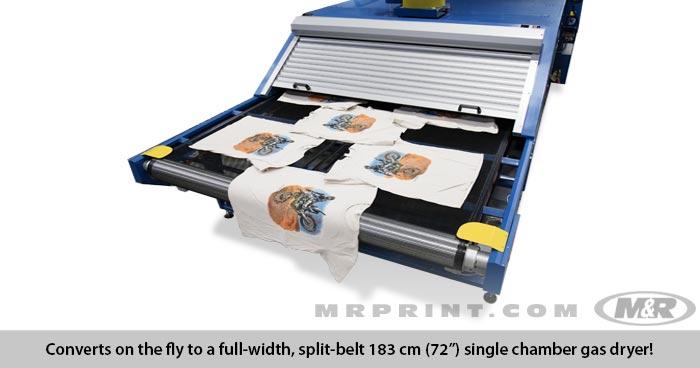

  • Can be converted on the fly into dual 91 cm (36”) heat zones that can be set at different temperatures
  • Double-wall construction
  • Galvanized steel interior
  • Modular gas train simplifies maintenance

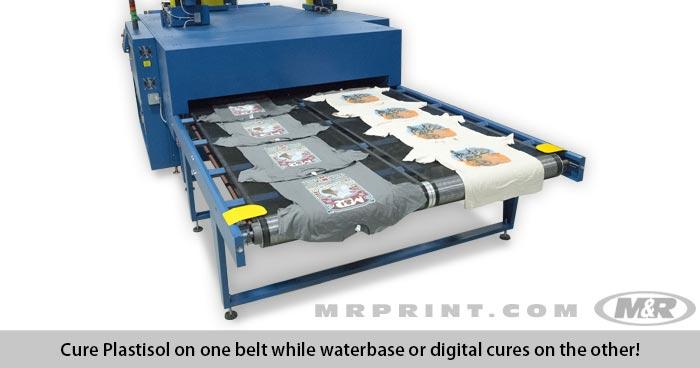

  • Production planning no longer needs to be dictated by traditional multiple-press, single-dryer scenarios. With the DHZ, operators simply change the side that requires different settings, giving greater flexibility and savings
  • Sprint 3000 models have the highest production capacity of any gas screen printing conveyor dryer in their class
  • 24-hour hotline is staffed 365 days a year
  • Parts & supplies are available online at
  • Two-year limited warranty
  • Infeed and outfeed conveyor extension sections are available in 122 cm (48") increments
  • 61 cm (24") expansion modules enable heat chamber lengths up to 610 cm (20') with a single burner section
  • 61 cm (24”) infrared pre-heat module speeds throughput

Model Specification

Belt Width 183 cm (72")
Burner Input Maximum 300,000 Btu
Electrical Requirements 208/230 V, 3 ph, 39/38 A, 50/60 Hz, 8.3kW
380/415 V, 3 ph, 26 A, 50 Hz, 8.3 kW
Electrical requirements for 61 cm (24”) Optional Radiant Section 208/230 V, 3 ph, 26/25 A, 50/60 Hz, 7.4 kW
380/415 V, 3 ph, 12/13 A, 50 Hz, 7.4 kW
Exhaust Blower Size 30 cm (12")
Exhaust System Capacity @ 6 mm (1/4") Static Pressure 50 970 l/min (1800 cfm)
Expansion Heat Modules 61 cm (24")
Gas Input Size 2.54 cm (1")
Heat Chamber Length 244 - 610+ cm (8' - 20+')
Heat Chamber Width 221 cm (87")
LP/Natural Gas Input Pressure .93 mm Hg (5" w.c.)
Overall Length 732 – 1524+ cm (24' – 50+')
Shipping Weight 2177 kg (4800 lb)
Standard Infeed/Outfeed Length 244 cm (96")/244 cm (96")
