CAROUSEL/INDEXER SYSTEM
  • Clockwise or counterclockwise rotation
  • Freewheel capability
  • Servo drive indexer provides smooth operation and durable consistency
CENTRAL OFF-CONTACT
  • Permits fast, incremental single-lever adjustment of all stations simultaneously
CERTIFICATION
  • CE & UL compliant: Built to specifications established by the European Committee for Standardization® (CE) and Underwriters Laboratories® (UL)
CONTROL CENTER
  • Countdown program indicates when operator-set index count has been reached

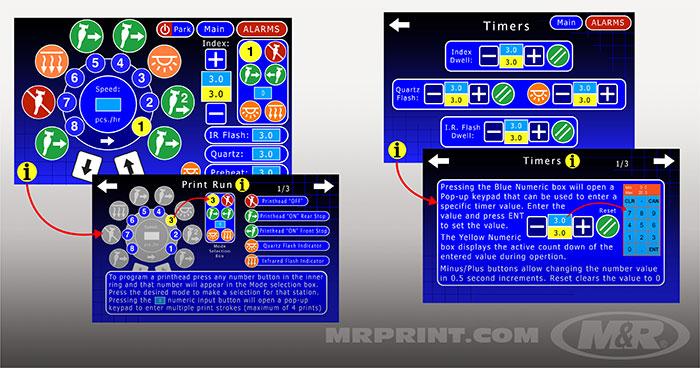

  • Icon-based, high-resolution Human Machine Interface (HMI) with built-in tutorial screens
  • Independent print-start/print-finish setting automatically activates and stops printheads at the beginning and end of production runs and also enables single pallet test printing
  • Multiple (1-4) print stroke capability
  • Onboard self-diagnostics
  • Real-time production speed monitor ensures more accurate job costing
  • Selectable multi-print in the up or down position
  • Swiveling control arm with multi-angle adjustable touch-screen display
DESIGN & CONSTRUCTION
  • Constructed from heavy-duty steel, aluminum and premium components
  • Engineered and built with 30 plus years of M&R’s commitment to quality and dependability
  • Heavy-duty printheads and pallet arms provide the stability necessary for exceptional screen print quality
LASER LOCATOR SYSTEM

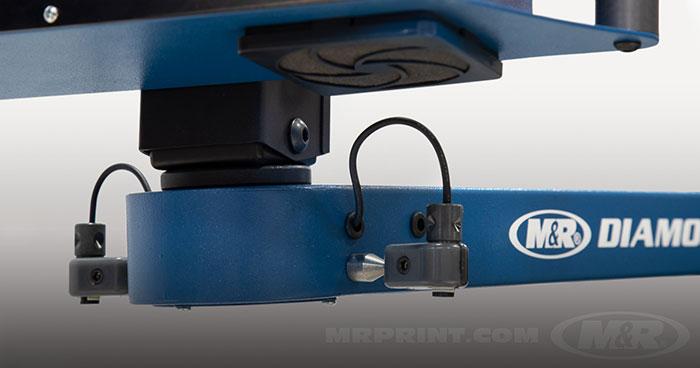

  • Assists operators in the precise positioning of garments and cut pieces. See it in action!
  • Speeds pallet positioning and changeover
PALLET SYSTEM
  • Precise three-point pallet leveling system
  • Solid-aluminum, low-profile, rubber-coated pallets
  • Tool-free quick release pallet locks
PRINTHEADS

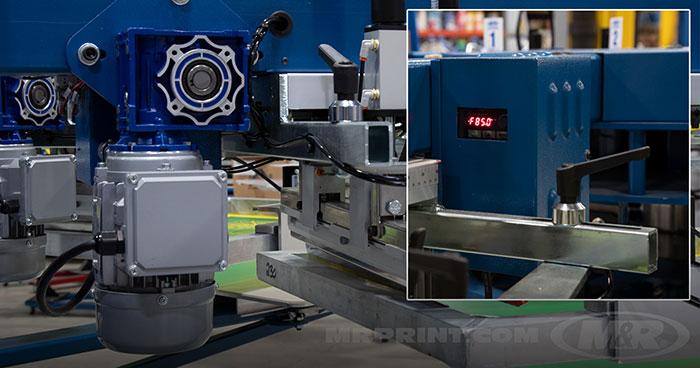

  • Brushless, maintenance-free electric-drive motors provide smooth linear movement and exceptional control
  • Four-point off-contact adjustment
  • Independent print button on each printhead allows operators to print from the head location
  • Independent print/flood speed controls on each printhead simplify screen printing press setup
  • Independent reset button on each printhead allows operator to lower the pallets and freewheel the carousel
REGISTRATION
  • Compatible with M&R’s Tri-Loc® and Tri-Sync™ Rapid Registration Systems

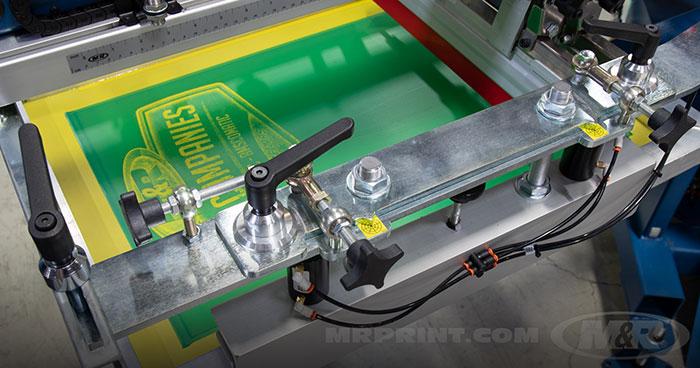

  • Precise locking micro-registration adjustments with visual guides
REVOLVER PRINT PROGRAM
  • Automatically operates individual printheads in programmed sequence and allows multiple flashing without losing a screen printing position
  • Icon based display and logic simplifies revolver sequence programming
SCREEN CLAMPS & HOLDERS
  • Adjustable side frame holders accommodate a wide variety of screen sizes
  • Anodized aluminum frame holders
  • Clamping system holds roller frames without special adapters

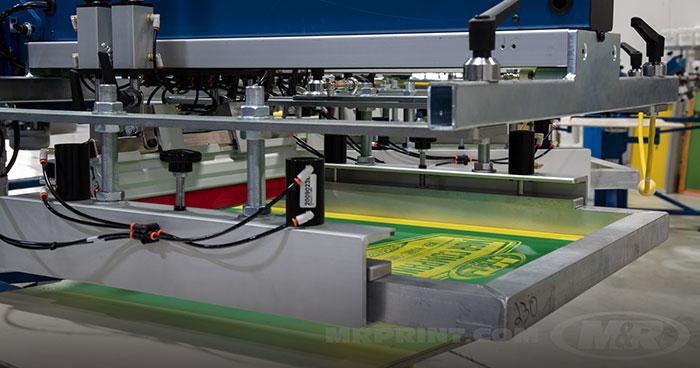

  • Pneumatic clamps hold frames tight and allow rapid screen loading
SQUEEGEE/FLOODBAR
  • Angle and calibrated pressure adjustments are independently set
  • Front or rear print carriage stop position allows operator to leave screens clear or flooded (great for water-based inks)

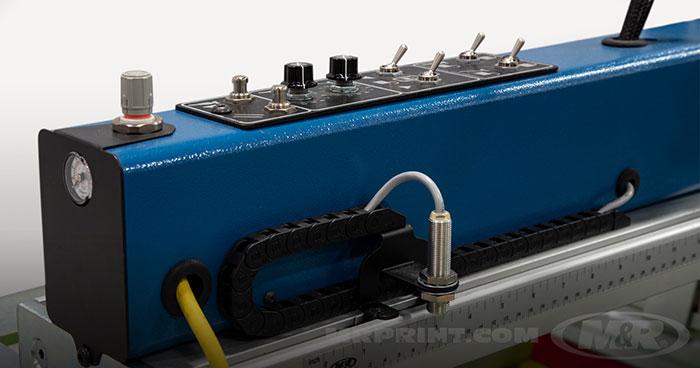

  • Independent squeegee/floodbar speed adjustments with digital display
  • Independently calibrated pressure adjustments for squeegees and floodbars
  • Pneumatic squeegee/floodbar clamps with tool-free calibrated angle adjustment
  • Squeegee air regulator with pressure gauge on each printhead offers consistent control of print pressure
  • Visual reference marks every 5 degrees simplify squeegee/floodbar angle adjustments
STROKE LENGTH ADJUSTMENT
  • Tool-free calibrated front & rear stroke length adjustment lets operators quickly maximize printing speed by limiting excess image overprint
WARRANTY, SERVICE AND SUPPORT
  • 24-hour hotline is staffed 365 days a year
  • Parts & supplies are available online at mrprint.com/store
  • Two-year limited warranty
DESIGN & CONSTRUCTION

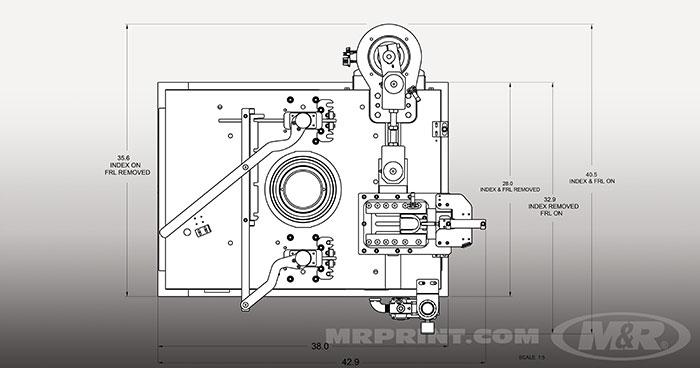

  • Designed & disassembled to fit through a 78 cm (31") doorway
FOOT PEDAL CONTROL
  • Allows indexing of the press using a foot pedal
  • Skip-Shirt foot pedal feature allows operators to avoid screen printing on empty pallets
OPTICAL NO-SHIRT DETECTOR
  • Automatically prevents the press from screen printing on empty pallets
  • Reduces misprints and minimizes press stoppage because of improperly loaded shirts

Model Specification


Air @ 6,9 bar (100 psi) 198 l/min (7 cfm)
Diameter 340 cm (11’ 2”)
Electrical Requirements 208/230 V, 1 ph, 26 A, 50/60 Hz, 3 kW
208/230 V, 3 ph, 16 A, 50/60 Hz, 3 kW
380/415 V, 3 ph, 10 A, 50/60 Hz, 3 kW
Maximum Frame Size 58 x 84 x 5 cm (23” x 33” x 2”)
Maximum Image Area 41 x 46 cm (16” x 18”)
Shipping Weight 1497 kg (3300 lb)
Standard Pallet Size 41 x 56 cm (16” x 22”)
