CAROUSEL/INDEXER SYSTEM
  • Clockwise or counterclockwise rotation
  • Double-Index feature allows a larger maximum image area when using alternating printheads
  • Smooth belt-driven indexer provides high speeds and long-term, consistent operation
CERTIFICATION
  • CE & UL compliant: Built to specifications established by the European Committee for Standardization® (CE) and Underwriters Laboratories® (UL)
CONTROL CENTER
  • Automatic Pallet Preheat Mode™ with built-in pallet temperature sensor allows operators to preheat pallets to the desired temperature using any compatible flash cure unit
  • Countdown program indicates when operator-set index count has been reached
  • Independent print-start/print-finish setting automatically activates and stops printheads at the beginning and end of print runs and also enables single pallet test printing
  • Jog-left/jog-right controls

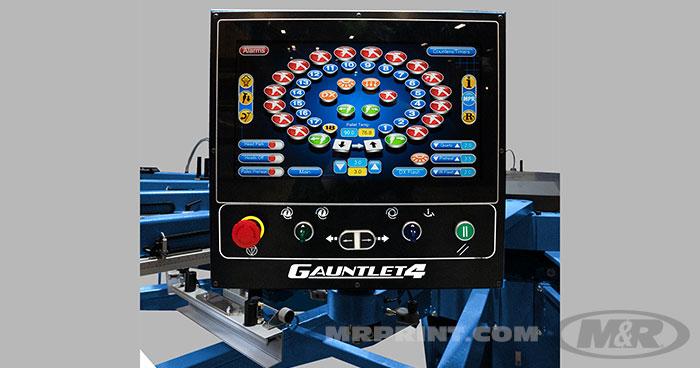

  • Large 15.6” machine mounted touchscreen interface
  • Maintenance Minder™ System alerts operators when scheduled maintenance is due
  • Multiple (1-4) print stroke capability
  • Onboard self-diagnostics
  • Real-time production speed monitor ensures more accurate job costing
  • Stopwatch feature enables users to capture elapsed time for setup times and run times
  • Swiveling control arm with large 30 cm (12”) icon-based, high-resolution Human Machine Interface (HMI) touchscreen
DESIGN & CONSTRUCTION
  • Constructed from heavy-duty steel, aluminum and premium components
  • Engineered and built with 35-plus years of M&R’s commitment to quality and dependability
  • Heavy-duty printheads and pallet arms provide the stability necessary for exceptional screen print quality
LASER LOCATOR SYSTEM
  • Assists operators in the precise positioning of garments and cut pieces. See it in action!
  • Speeds pallet positioning and changeover
PALLET SYSTEM
  • Advanced pallet leveling system
  • One (1) Tri-Sync™ pallet arm included
  • Solid-aluminum, low-profile, rubber-coated pallets
  • Tool-free quick release pallet locks
PRINTHEADS
  • Brushless, variable-frequency, electric-drive motors deliver smooth screen print strokes and exceptional control
  • Independent print and reset buttons on each printhead
  • Independent print/flood speed controls with digital display on each printhead

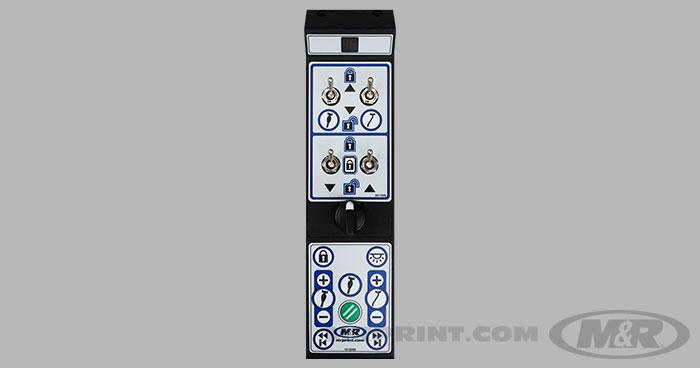

  • Membrane switch printhead controls for accuracy, versatility and control
  • Tool-free click-stop calibrated four-point off-contact allows for fast and accurate screen adjustments
  • Underhead LED lights provide better lighting to check screen clearing and registration
REGISTRATION
  • Compatible with M&R’s Tri-Loc® and Tri-Sync™ Rapid Registration Systems
  • Precise front and rear micro-registration adjustments with visual guides
REVOLVER PRINT PROGRAM
  • Automatically operates individual printheads in programmed sequence and allows multiple flashing without losing a screen printing position
  • Icon based display and logic simplifies revolver sequence programming
SCREEN CLAMPS & HOLDERS
  • Adjustable rear screen holders accommodate a wide variety of screen sizes
  • Clamping system holds roller frames without special adapters

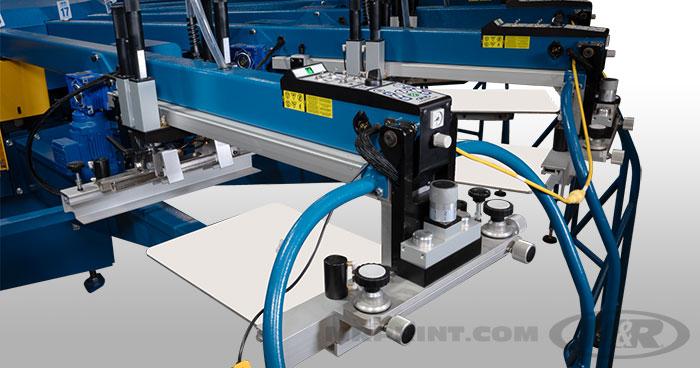

  • Flip-up front screen holders with pneumatic locking system speed setup
  • Pneumatic clamps hold frames tight and allow rapid screen loading
SQUEEGEE DAM
  • Gently lowers the squeegee blade onto the screen mesh when the press is idle
  • Helps prevent thinner water based and discharge inks from flowing into the image area
SQUEEGEE/FLOODBAR
  • Front or rear print carriage stop position allows operator to leave screens clear or flooded (great for water-based inks)
  • Independent squeegee and floodbar speed adjustments with digital display
  • Independently calibrated pressure adjustments for squeegees and floodbars
  • Ink Dip electronically adjustable ink retrieval system keeps ink in the print area
  • Park function raises the squeegee/floodbar assemblies and moves them to the front of the screen for easy access
  • Pneumatic squeegee/floodbar clamps with tool-free calibrated angle adjustment
  • Squeegee air regulator with pressure gauge on each printhead offers consistent control of print pressure
  • Squeegee/floodbar angle adjustments with visual reference marks every 5 degrees
STROKE LENGTH ADJUSTMENT
  • Tool-free calibrated front & rear stroke length adjustment lets operators quickly maximize printing speeds by limiting excess image overprint
WARRANTY, SERVICE AND SUPPORT
  • 24-hour hotline is staffed 365 days a year
  • Parts & supplies are available online at mrprint.com/store
  • Two-year limited warranty
FOOT PEDAL CONTROL
  • Allows indexing of the press using a foot pedal
  • Skip-Shirt foot pedal feature allows operators to avoid screen printing on empty pallets
OPTICAL NO-SHIRT DETECTOR
  • Automatically prevents the press from printing on empty pallets (U.S. Patent No. 5,383,400)
  • Reduces misprints and minimizes press stoppage because of improperly loaded shirts
PALLETS
  • M&R aluminum pallets and platens come in a wide range of sizes and styles

Model Specification


Air @ 6,9 bar (100 psi) 509 I/min (18 cfm)
Diameter 564 cm (18' 6")
Electrical Requirements 208/230 V, 3 ph, 48 A, 50/60 Hz, 11 kW
380/415 V, 3 ph, 29 A, 50/60 Hz, 11 kW
Maximum Frame Size 66 x 91 x 5 cm (26" x 36" x 2")
Maximum Frame Size (Alternating Printheads) 132 x 91 cm (52" x 36")
Maximum Image Area 51 x 51 cm (20" x 20")
Maximum Image Area (Alternating Printheads) 94 x 51 cm (37" x 20")
Shipping Weight 4100 kg (9000 lb)
Standard Pallet Size 41 x 56 cm (16" x 22")
56 x 63 cm (22" x 25")
Stations/Colors 16/14
