New DS-4000™ Digital Squeegee® Hybrid Printing System


Service & Support

Learn More
CONTROL CENTER
  • The DS-4000 includes computer with operating system software installed
DESIGN & CONSTRUCTION
  • Built of heavy-duty steel and premium components
FABRIC COMPATIBILITY
  • The Digital Squeegee process can be used on virtually any fabric that will accept HSA water-based inks and can be cured using a tunnel dryer. This process has successfully been tested on cotton, polyester, blends, and performance fabrics
HIGH-SPEED PRINTHEADS
  • The DS-4000 uses 16 industrial printheads to print a full-size image every 4-to-6 seconds; that’s up to 400 prints per hour!
INK COMPATIBILITY

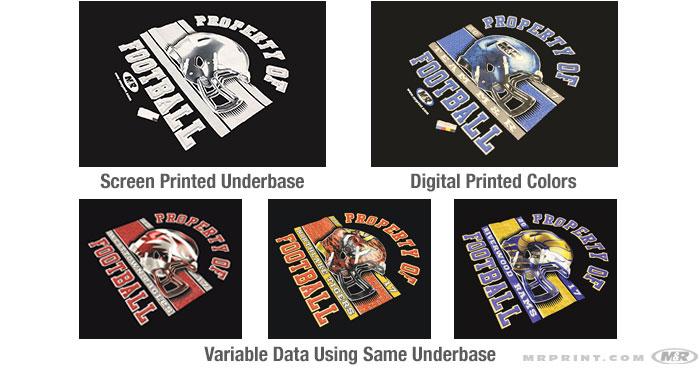

  • DS-4000 inks are compatible with specially-formulated high-solids acrylic (HSA) inks for screen printing a white underbase
INK SYSTEM
  • The DS-4000 uses Cyan, Magenta, Yellow, and Black inks
PRESS COMPATIBILITY
  • The DS-4000 is Compatible with Challenger® III, Gauntlet® III ,and the Stryker™ oval press
PRINT AREA
  • The DS-4000 has 16 printheads arranged in a 42 cm (16”) array to provide a maximum print area of 38 cm x 48 cm (15” x 19”)
RESOLUTION
  • The industrial printheads can produce images at resolutions up to 600 x 1200 dpi
WARRANTY, SERVICE AND SUPPORT
  • 24-hour hotline is staffed 365 days a year
  • One-year limited warranty
Z-AXIS ADJUSTMENT
  • Z-Axis adjustment allows the printhead distance to be adjusted 3-10mm from the printing surface
WARRANTY, SERVICE AND SUPPORT
  • A pre-paid maintenance agreement is available – see an M&R representative for more details

Model Specification


Air @ 6 bar (87 psi) 100 l/min (3 cfm)
Electrical Requirements 220 V, 1ph, 10 A, 50/60Hz, 2.2 kW
Maximum Image Area 38 cm x 48 cm (15” x 19”)
Maximum Resolution 600 x 1200 dpi
Overall Size (W x D x H) 121 x 264 x 219 cm (48” x 104” x 86”)
Press Compatibility Compatible with Stryker™, Challenger® III, Gauntlet® III presses
Printable Fabrics Cotton, Polyester, Tri-Blends & Performance Fabrics
Printheads 16 Industrial Printheads
Printing Height 3-10 mm
Shipping Weight 1200 kg (2646 lb)
