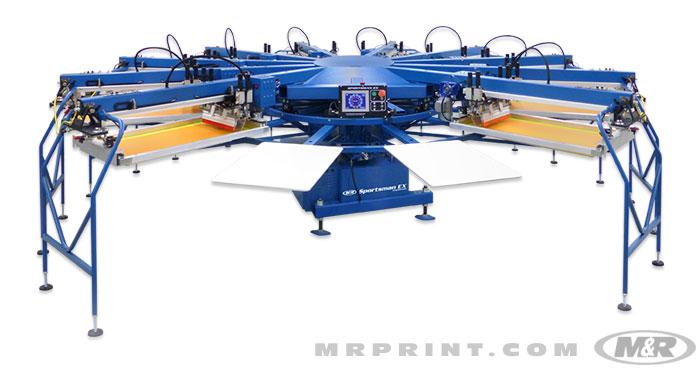

SPORTSMAN® EX Automatic Screen Printing Press


Downloadable Information

Product Brochure

Service & Support

Learn More
CAROUSEL/INDEXER SYSTEM
  • Clockwise or counterclockwise rotation
  • Double index capability (Sportsman EX 5070 only)
  • Freewheel capability
  • Servo drives combine higher screen printing press speeds with exceptional smoothness, consistency, and longevity
CENTRAL OFF-CONTACT
  • Permits fast, incremental single-lever adjustment of all stations simultaneously
CERTIFICATION
  • CE Certified: Built to specifications established by the European Committee for Standardization® (CE)
  • UL Listed: Built to specifications established by Underwriters Laboratories® (UL)
CONTROL CENTER
  • Countdown program indicates when operator-set index count has been reached

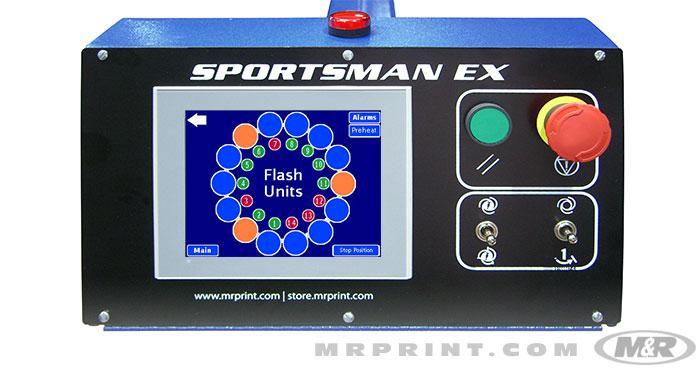

  • Digital touchscreen control panel with icon-based graphics can display information and commands in multiple languages
  • Independent print-start/print-finish setting automatically activates and stops printheads at the beginning and end of print runs and also enables single pallet test printing
  • Maintenance Minder™ System alerts operators when scheduled maintenance is due
  • Multiple (1-4) print stroke capability
  • Onboard self-diagnostics
  • Provides control of multi-print functionality
  • Real-time production speed monitor ensures more accurate job costing
DESIGN & CONSTRUCTION
  • Built of heavy-duty steel and premium components
LASER LOCATOR SYSTEM
  • Assists operators in the precise positioning of garments and cut pieces. See it in action!
  • Speeds pallet positioning and changeover
PALLET SYSTEM
  • Precise three-point pallet leveling system
  • Solid-aluminum, low-profile, rubber-coated pallets
  • Tool-free quick release pallet locks
PRINTHEADS
  • Electric printheads with variable-speed motors provide smooth print strokes and exceptional control
  • Four-point off-contact adjustment
  • Independent print button on each printhead allows operators to print from the head location
  • Independent print/flood speed controls on each printhead simplify screen printing press setup
  • Independent reset button on each printhead allows operator to lower the pallets and freewheel the carousel
  • Multi-print without lowering the indexer
REGISTRATION
  • Compatible with M&R’s Tri-Loc® Rapid Registration System
  • Enhanced front micro-registration adjustments with visual guides
  • Locking rear micro-registration
REVOLVER PRINT PROGRAM
  • Automatically operates individual printheads in programmed sequence and allows multiple flashing without losing a screen printing position

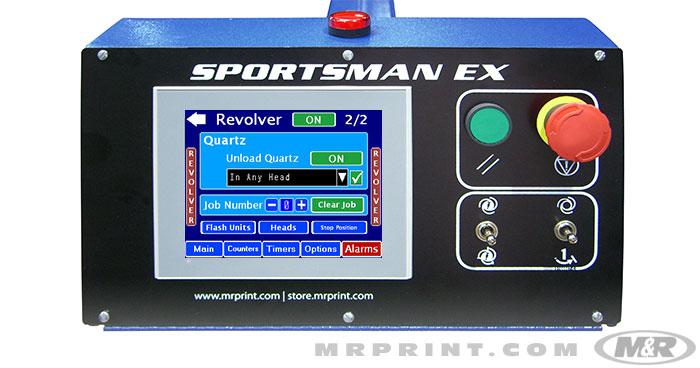

  • Touchscreen display with simplified programming provides easy setup of the Revolver Sequencing Program
SCREEN CLAMPS & HOLDERS
  • Adjustable rear screen holders accommodate a wide variety of screen sizes
  • Clamping system holds roller frames without special adapters
  • Flip-up front screen holders speed setup
  • Pneumatic clamps hold frames tight and allow rapid screen loading
SQUEEGEE/FLOODBAR
  • Angle and calibrated pressure adjustments are independently set
  • Digital squeegee/floodbar speed display
  • Front or rear print carriage stop position allows operator to leave screens clear or flooded (great for water-based inks)
  • Independent squeegee & floodbar speed adjustments
  • Park position simplifies squeegee and floodbar installation and removal, and allows flood and squeegee to be raised and moved to the front or rear without flooding or printing
  • Pneumatic squeegee/floodbar locks with tool-free angle adjustment
  • Squeegee air regulator with a pressure gauge on each printhead
  • Visual reference marks every 5 degrees simplify squeegee/floodbar angle adjustments
STROKE LENGTH ADJUSTMENT
  • Calibrated front & rear stroke length with tool-free adjustment maximizes screen printing speed
WARRANTY, SERVICE AND SUPPORT
  • 24-hour hotline is staffed 365 days a year
  • Parts & supplies are available online at mrprint.com/store
  • Sportsman EX 4045 & 5050: Two-year limited warranty
  • Sportsman EX 5070: One-year limited warranty
DESIGN & CONSTRUCTION
  • Designed & disassembled to fit through a 97 cm (38") doorway
FOOT PEDAL CONTROL
  • Allows indexing of the press using a foot pedal
  • Skip-Shirt foot pedal feature allows operators to avoid screen printing on empty pallets
OPTICAL NO-SHIRT DETECTOR
  • Automatically prevents the press from screen printing on empty pallets
  • Reduces misprints and minimizes press stoppage because of improperly loaded shirts
PALLETS
  • M&R aluminum pallets and platens come in a wide range of sizes and styles

Model Specification


Air @ 6,9 bar (100 psi) 255 l/min (9 cfm)
Diameter 358 cm (11' 9")
Electrical Requirements 208/230 V, 1 ph, 31 A, 50/60 Hz, 3.3 kW
208/230 V, 3 ph, 20 A, 50/60 Hz, 3.3 kW
380/415 V, 3 ph, 10 A, 50/60 Hz, 3.3 kW
Maximum Frame Size 58 x 84 x 5 cm (23" x 33" x 2")
Maximum Image Area 41 x 46 cm (16" x 18")
Shipping Weight 1497 kg (3300 lb)
Standard Pallet Size 41 x 56 cm (16” x 22”)
Stations/Colors 8/6
